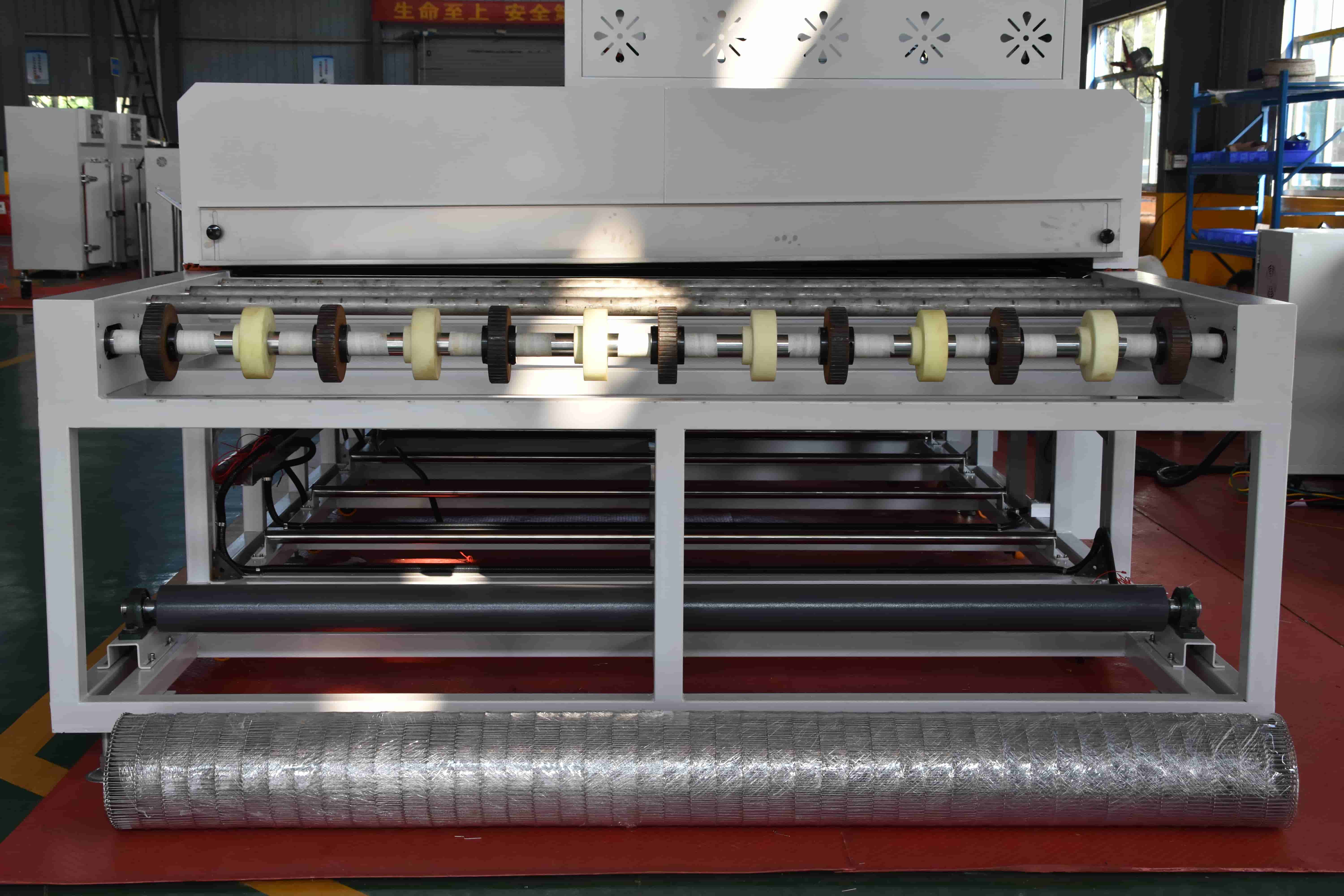

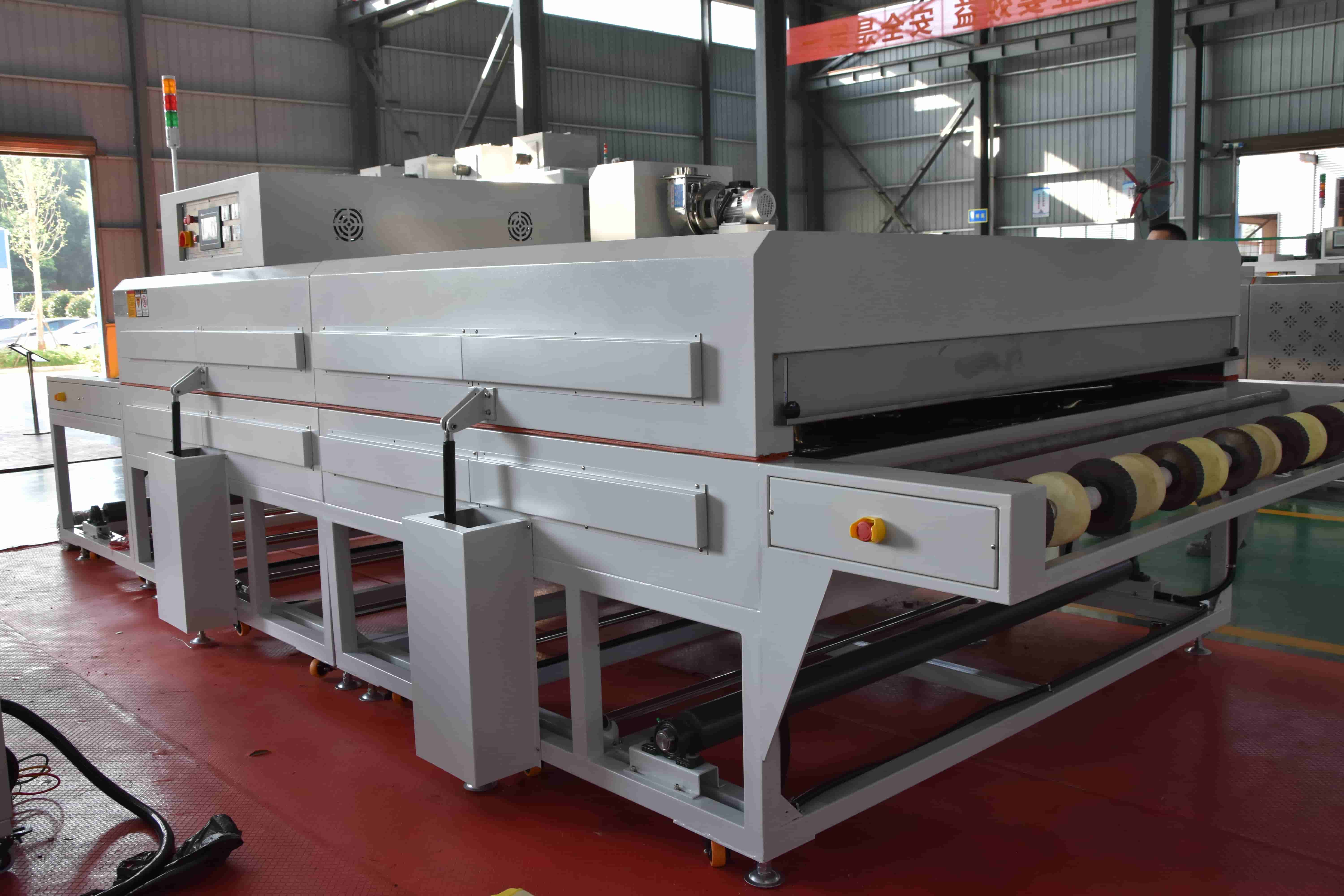

NMT-SDL-676 Infrared heating tunnel furnace for softening automobile interior panels

Specifications:

NMT-SDL-676

1. Inner Tank Dimensions: Heating Zone Length 4000mm * Feed Inlet Height 200mm * Inner Width 2300mm;
2. External Dimensions (approximate): Total Length 5800mm * Height 1650mm * Width 2540mm; Feed Section Length 1200mm, Heating Section Length 4000mm, Discharge Section Length 600mm; Conveyor Belt Bottom Height Adjustable 1000±50mm from the Ground; Heating Zones 1 and 4 are 500mm each, and Zones 2 and 3 are 1500mm each.
3. Temperature Range: Room Temperature to +300°C;
4. Temperature Fluctuation: ±1°C;
5. Temperature Uniformity: ±5°C (tested at constant temperature, no-load);
6. Heating Rate: 10°C/min;
7. Power: 70kW
