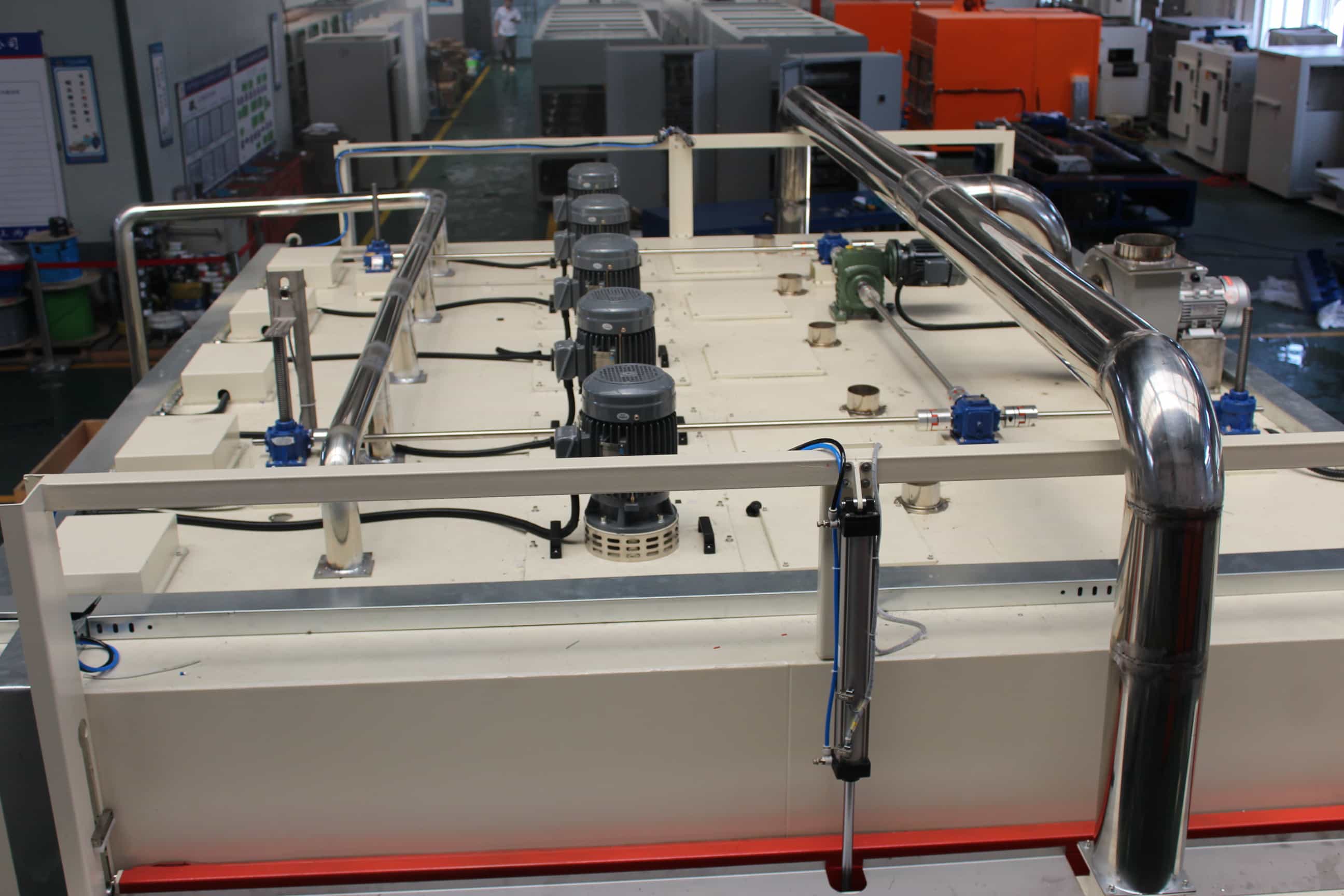

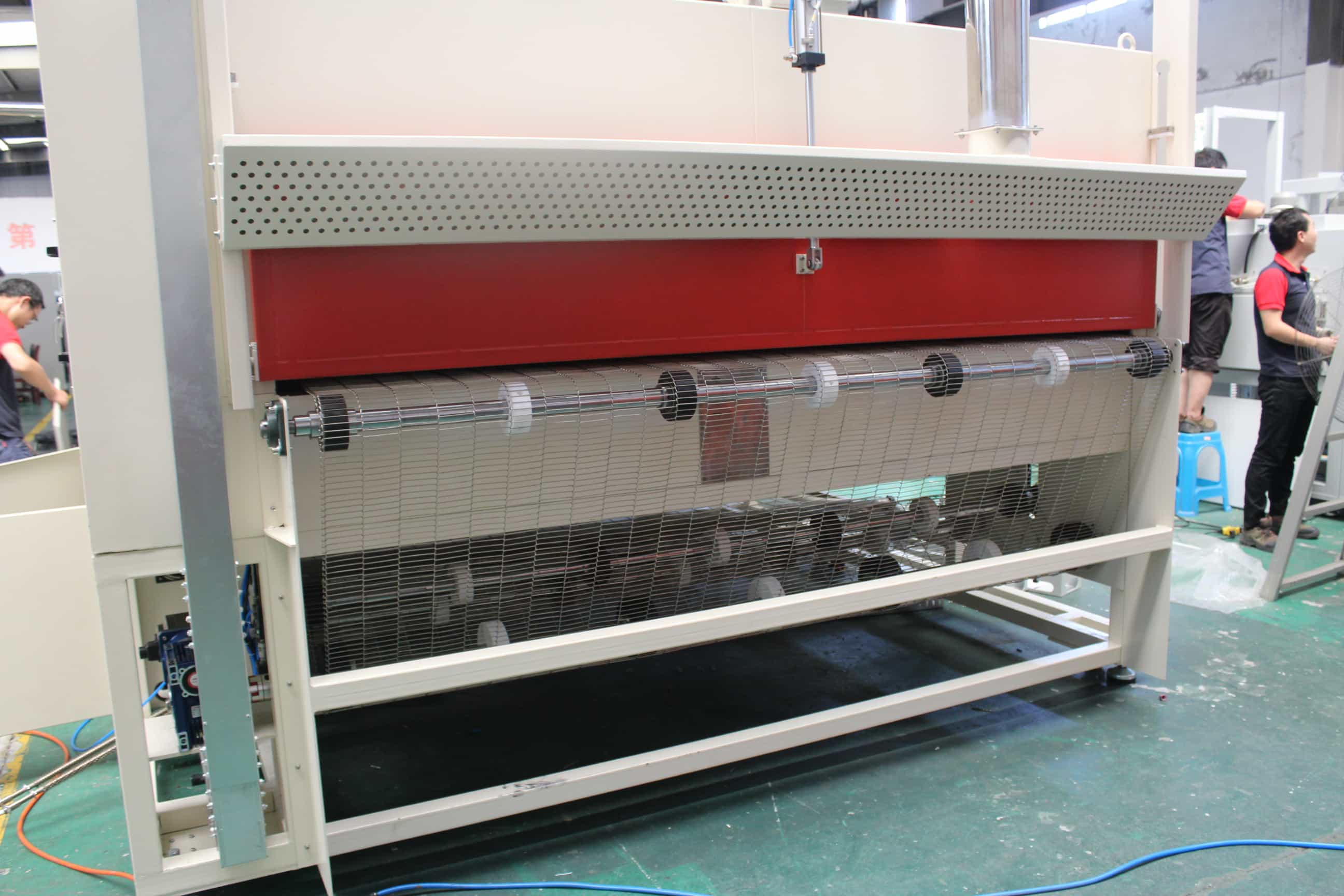

NMT-SDL-675 Automobile sound-absorbing cotton softening tunnel furnace

Specifications:

NMT-SDL-675

1. Heating Material: Material Dimensions: L2275 x W1330 x H21mm; Material Composition: Recycled Cotton 75%-80% + Bico 20%-25%;
2. Inner Tank Dimensions: Heating Zone Length 3500mm x Inner Width 2500mm x Inlet Height 100mm;
3. External Dimensions (approximate): Length 3700mm x Height 1390mm x Width 2900mm, with 5 heating sections; Inlet Zone Length 100mm, Outlet Zone Length 200mm; Conveyor Belt Height 1230±25mm from Ground.
4. Temperature Range: Room Temperature to +350°C;
5. Temperature Fluctuation: ±1°C;
6. Temperature Uniformity: ±5°C (no load);
7. Heating Rate: 30 minutes to 350°C;
8. Casing Temperature: No more than +15°C above ambient, excluding seams. 9. Hot Air Circulation: High-volume internal air circulation, with top perforated outlet and bottom side return air.
10. Power Supply: Three-phase, five-wire, 380V, 50Hz.
11. Power: 150kW.
