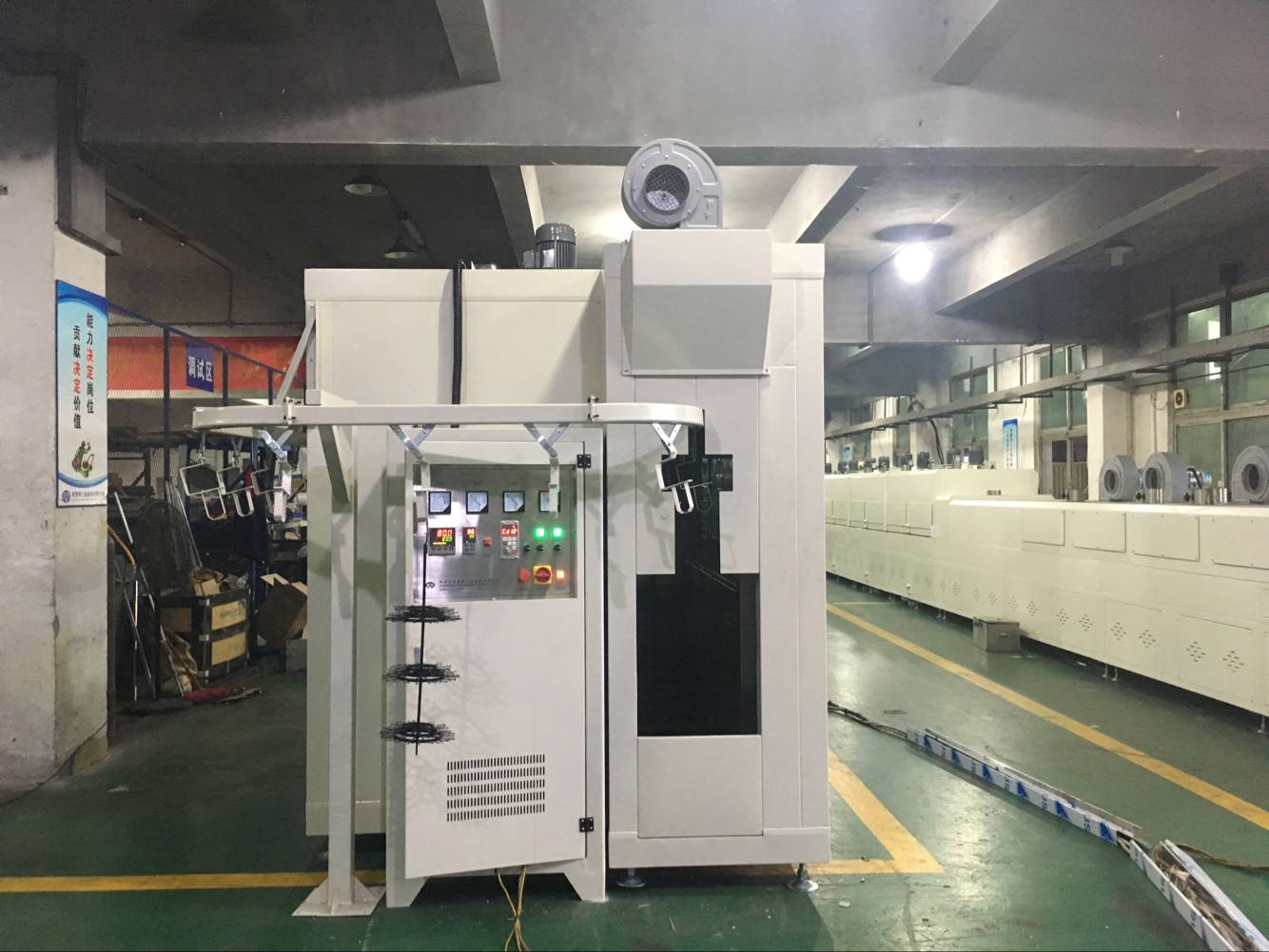

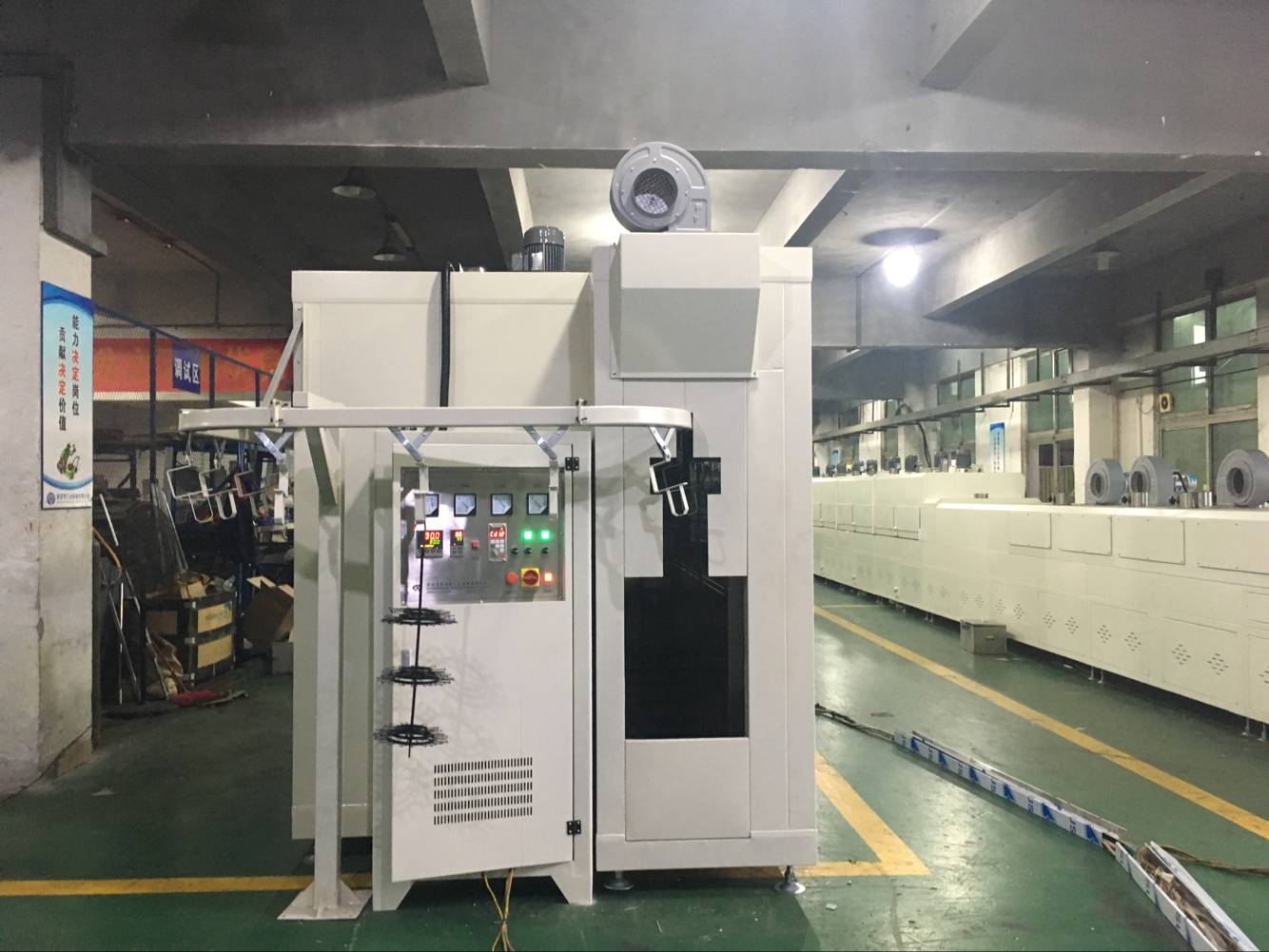

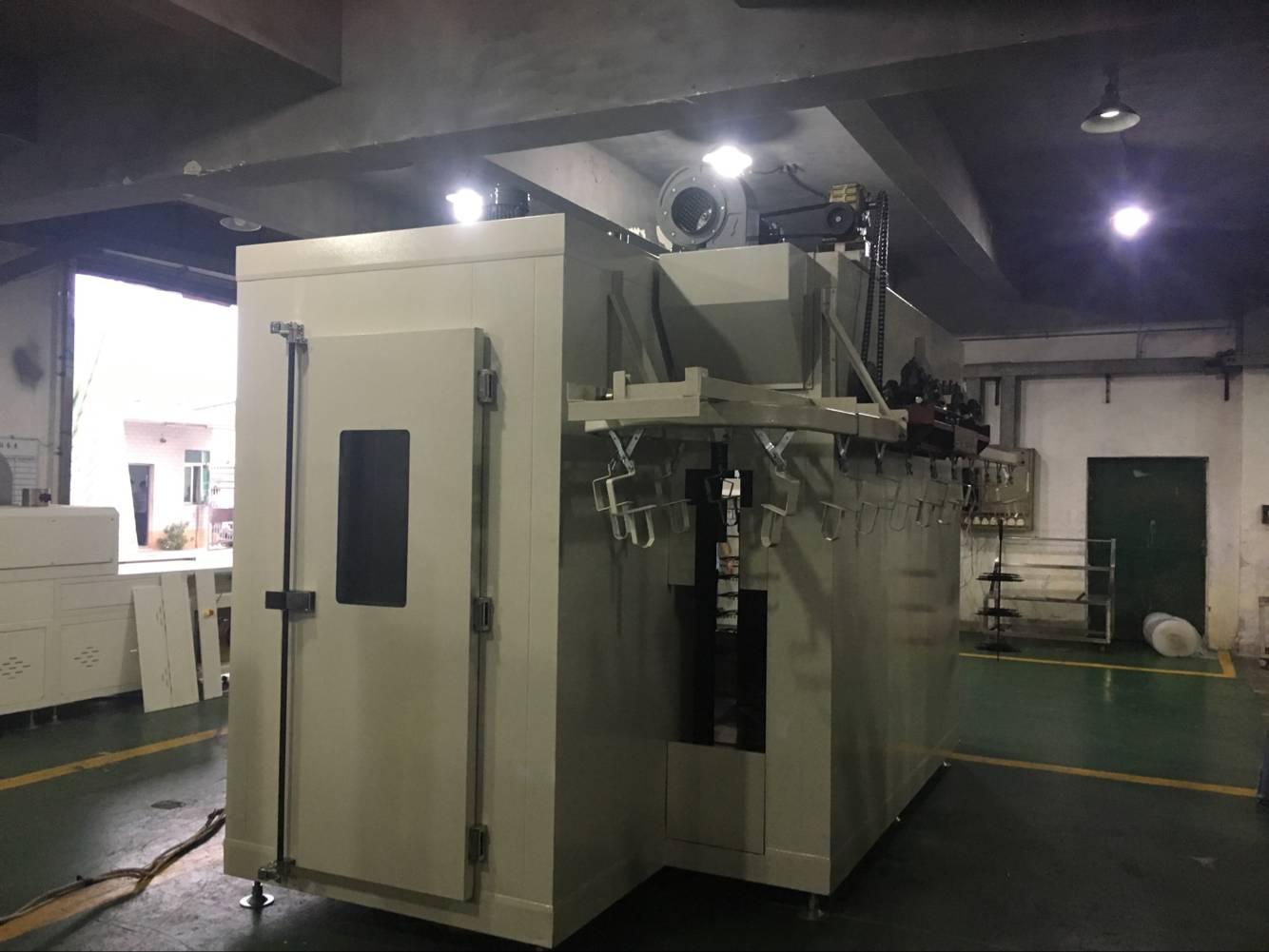

NMT-SDL-510 Electrophoresis plating drying tunnel furnace

Specifications:

NMT-SDL-510
1. Processing: Eyeglass frame hanger, H800mm, diameter 300mm, weight 5kg; Processing: 85°C, 15 minutes; Conveying method: Overhead single-row conveyor, 450mm spacing between each product; Cycle time: 59 seconds/hang; Heating method: Electric heating, two side outlets, top return air;
2. Heating zone dimensions: 85°C zone hanging line length 7.2 meters, suitable for 16 hangers;
3. Floor space (approximately): L4050 x W2050 x H2420mm;
4. Temperature range: Room temperature to +100°C;
5. Temperature fluctuation: ±2°C;
6. Temperature uniformity: ±5°C;
7. Heating rate: ≥5°C/min;
8. Casing temperature: The furnace outer wall temperature rise shall not exceed +15°C above ambient; insulation ribs shall be provided around joints;
9. Air circulation: Three-sided circulation, left and right outlets, top intake;
10. Power supply: Three AC 380V 50HZ;
11. Power: Designed heating power 42kW, designed total power 50kW;
