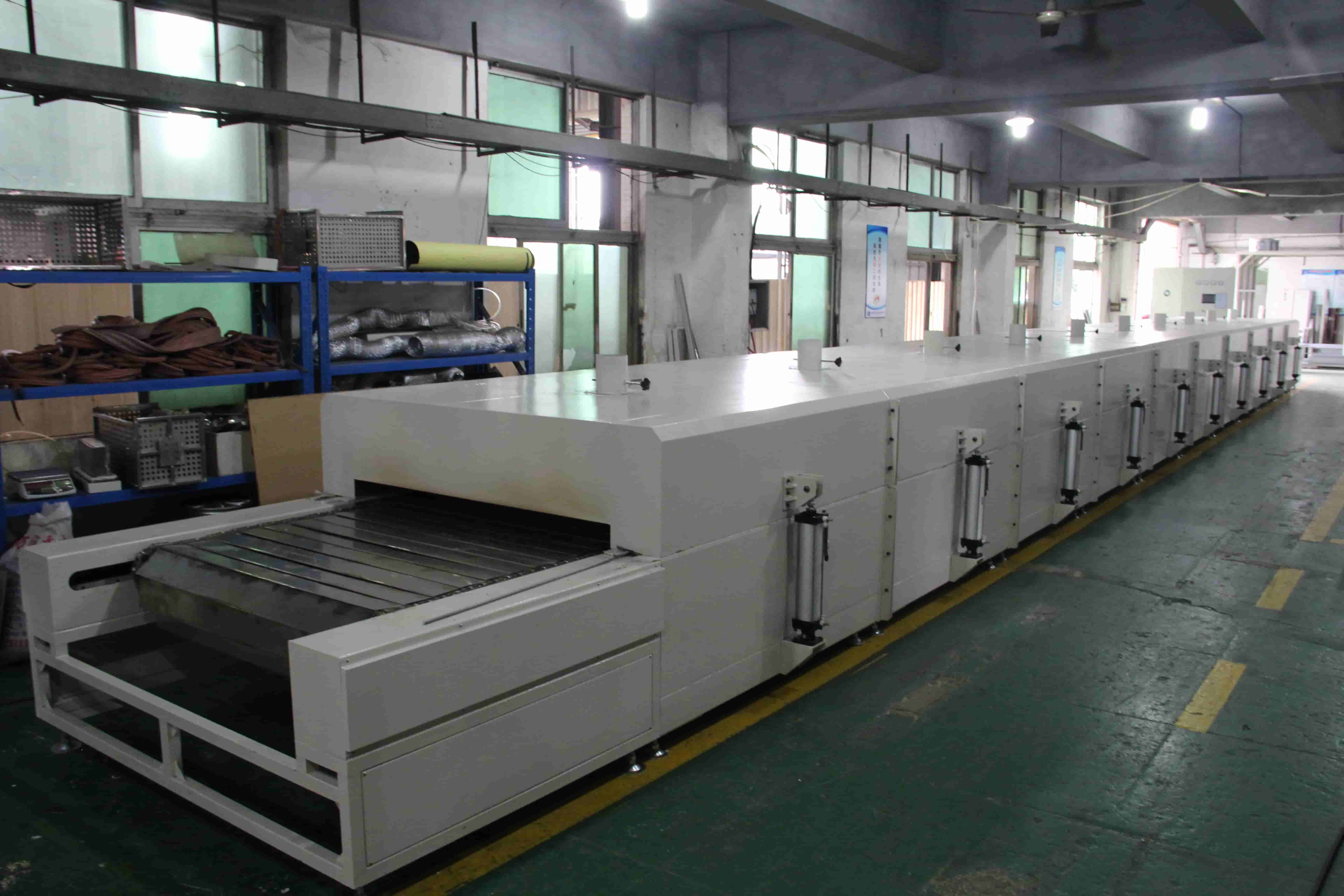

NMT-SDL-509 Lithium battery high temperature tunnel drying furnace

Specifications:

NMT-SDL-509
1. Inner Tank Dimensions: Heating Zone Length 20,000 mm * Feed Inlet Height 200 mm * Inner Tank Effective Width 1,400 mm;
2. External Dimensions (Approximate): 1. Total Length 22,000 mm * Height 1,800 mm * Width 2,000 mm; Feed Section Length 1,000 mm, Drying Section Length 20,000 mm, Discharge Section Length 1,000 mm; Feed Conveyor Belt Height 850 mm from Ground Level;
3. Temperature Range: Room Temperature to +500°C;
4. Temperature Fluctuation: ±1°C;
5. Temperature Uniformity: ±5°C (Tested at Constant Temperature, No-Load);
6. Heating Rate: 8°C/min;
7. Casing Temperature: No more than +15°C above ambient temperature, excluding areas around seams.
8. Power Supply: Three-phase, five-wire, 380V, 50Hz;
9. Power: 400kW
