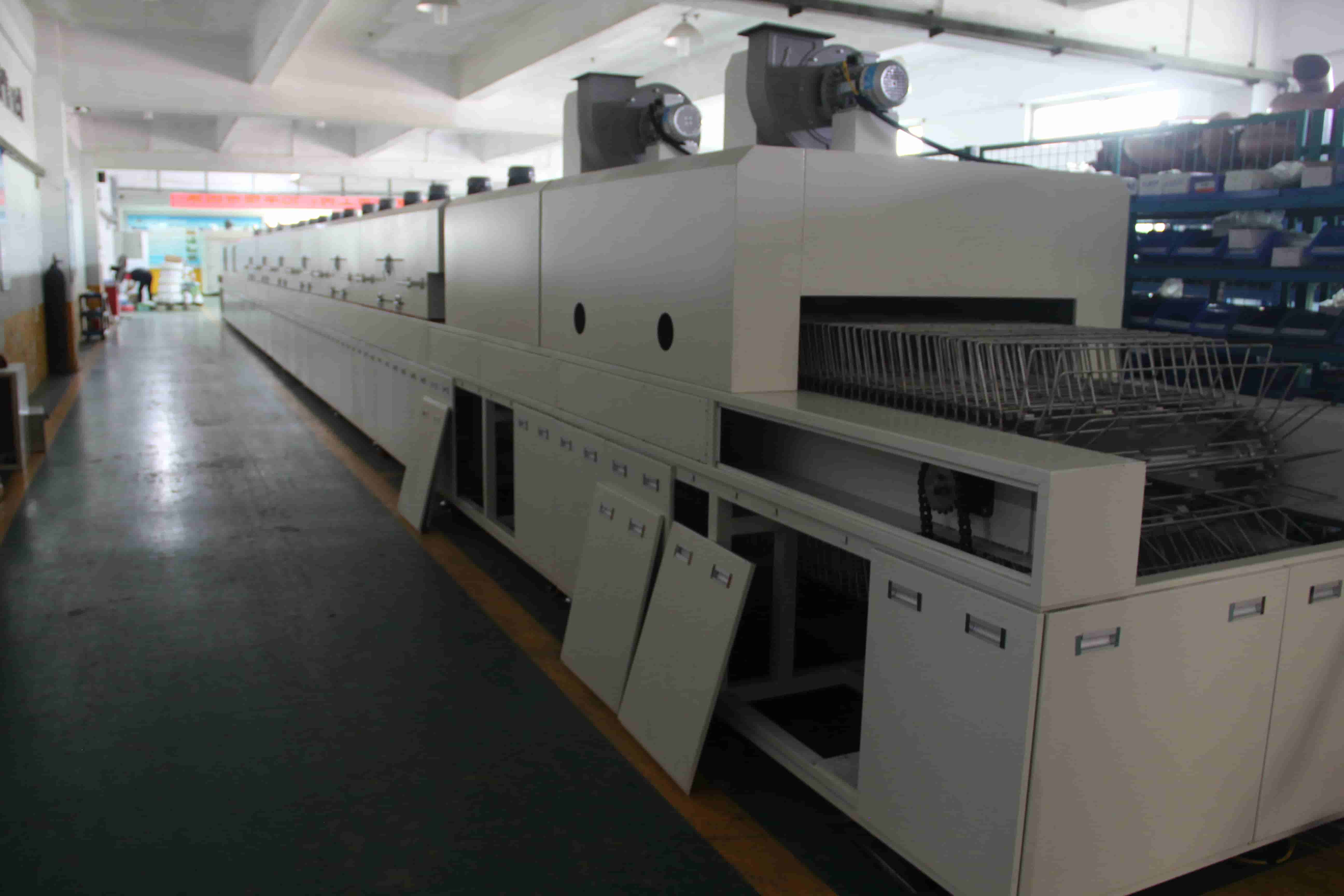

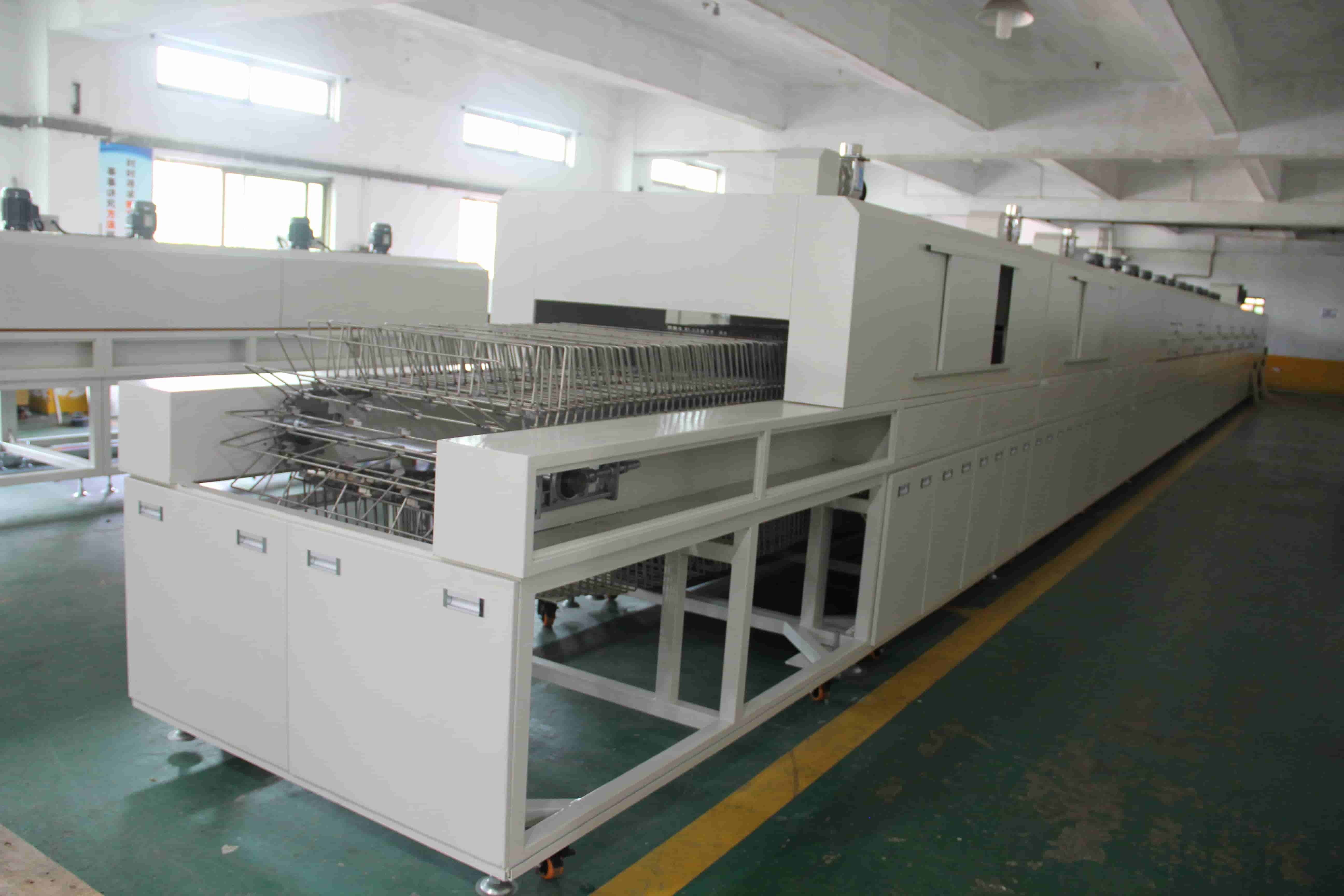

NMT-SDL-962 Drying tunnel furnace

Specifications:

NMT-SDL-962
1. Inner Chamber Dimensions: Drying Area: Length 12000mm * Net Height 250mm * Inner Width 1000mm;
2. Temperature Range: Room Temperature +20°C to +200°C (Adjustable);
3. Instrument Display Accuracy: ≤±0.1°C;
4. Instrument Temperature Fluctuation: ≤±1°C;
5. Temperature Uniformity: ≤±5°C (No-load);
6. Heating Rate: ≤8°C/min;
7. Air Supply Method: Double-sided circulation;
8. Casing Temperature: Equipment temperature within 200°C, casing temperature not exceeding room temperature +15°C, excluding the furnace mouth and joints;
9. Power Supply: Three-phase five-wire, 380V, 50Hz;
10. Total Power: Approximately 110kW
