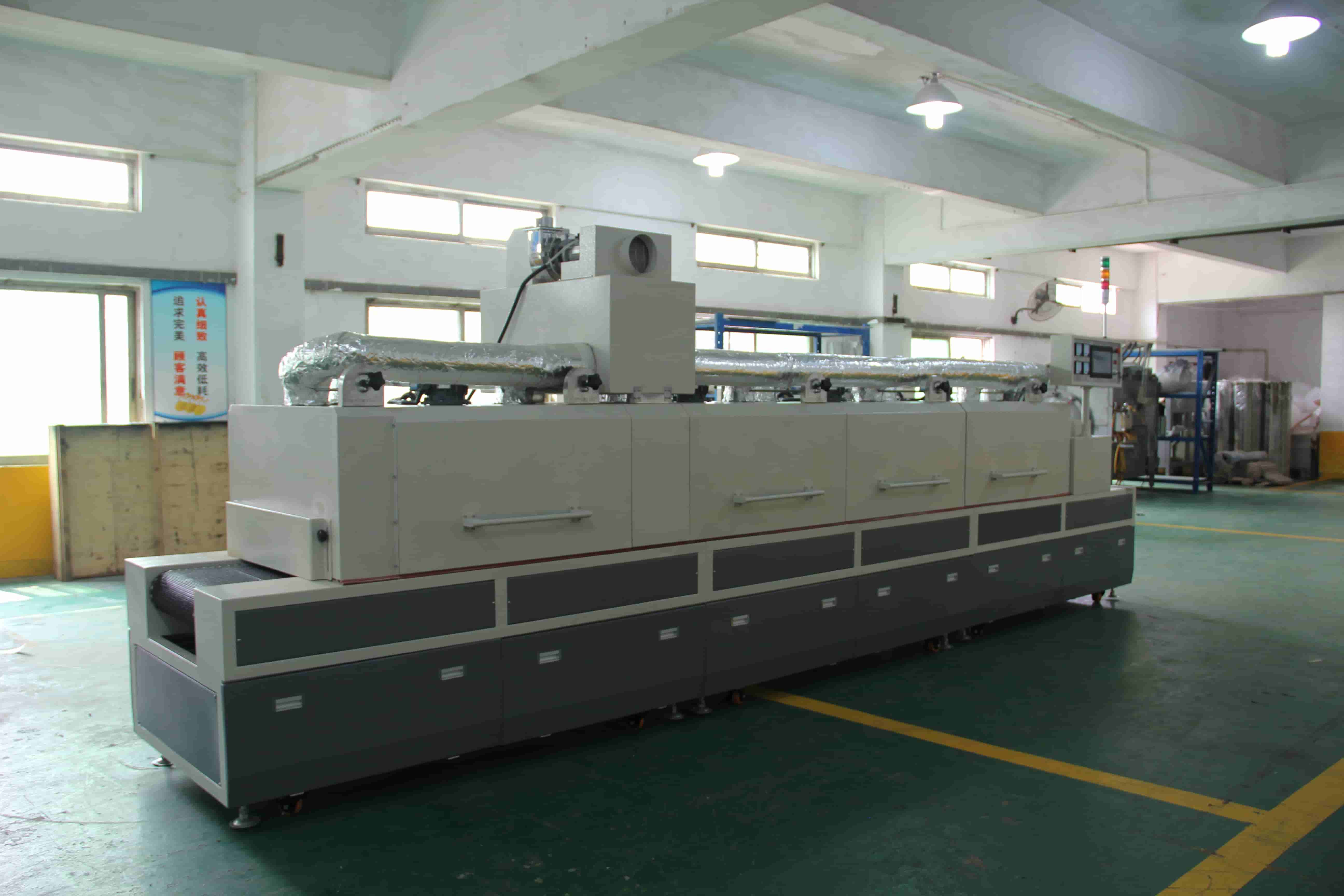

NMT-SDL-955 Transformer drying tunnel furnace

Specifications:

NMT-SDL-955
1. Inner Tank Dimensions: Drying Area: Length 4000mm x Net Height 150mm x Inner Width 500mm

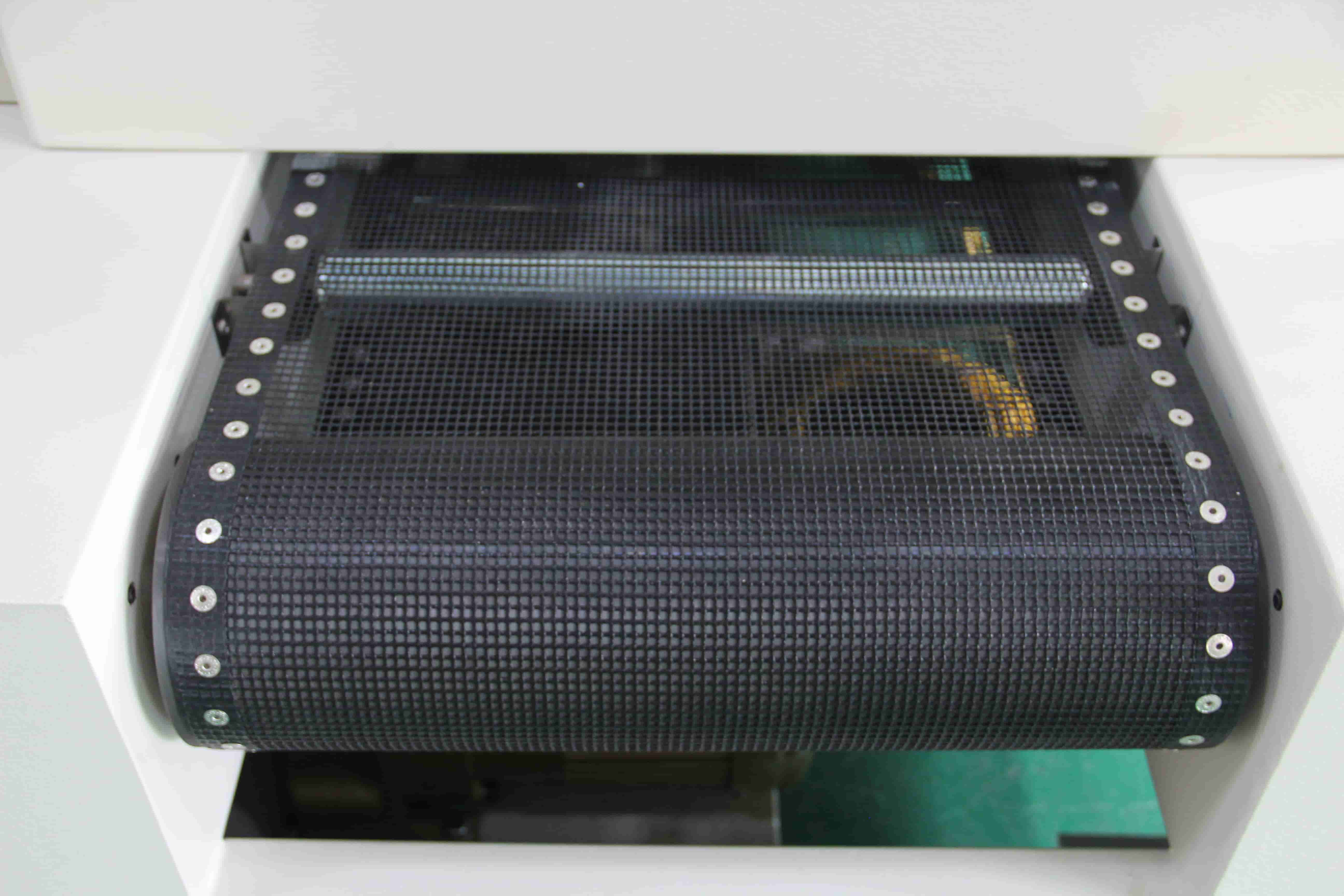

2. External Dimensions (approximate): Drying Line Total Length 6000mm, Total Width 1000mm, Total Height 1320mm, Mesh Belt Height 750mm from Ground

3. Temperature Range: Room Temperature to +150°C

4. Instrument Display Accuracy: ≤±0.1°C

5. Temperature Uniformity: ≤±5°C (No-load)

6. Heating Rate: ≤8°C/min

7. Airflow: Up-and-down circulation

8. Casing Temperature: Casing temperature not exceeding room temperature +10°C; joints are insulated.

9. Power Supply: Three-phase, five-wire, 380V, 50Hz

10. Total Power: 25kW
