NMT-SDL-958
1. Inner Chamber Dimensions: Drying Area: Length 13,000mm * Height 150mm * Inner Width 1600mm.
2. External Dimensions (approximate): Total Length 16,000mm * Height 1340mm * Width 1840mm, Floor-to-Belt Height 850mm, Inner Width 1600mm, Feed Height 150mm.

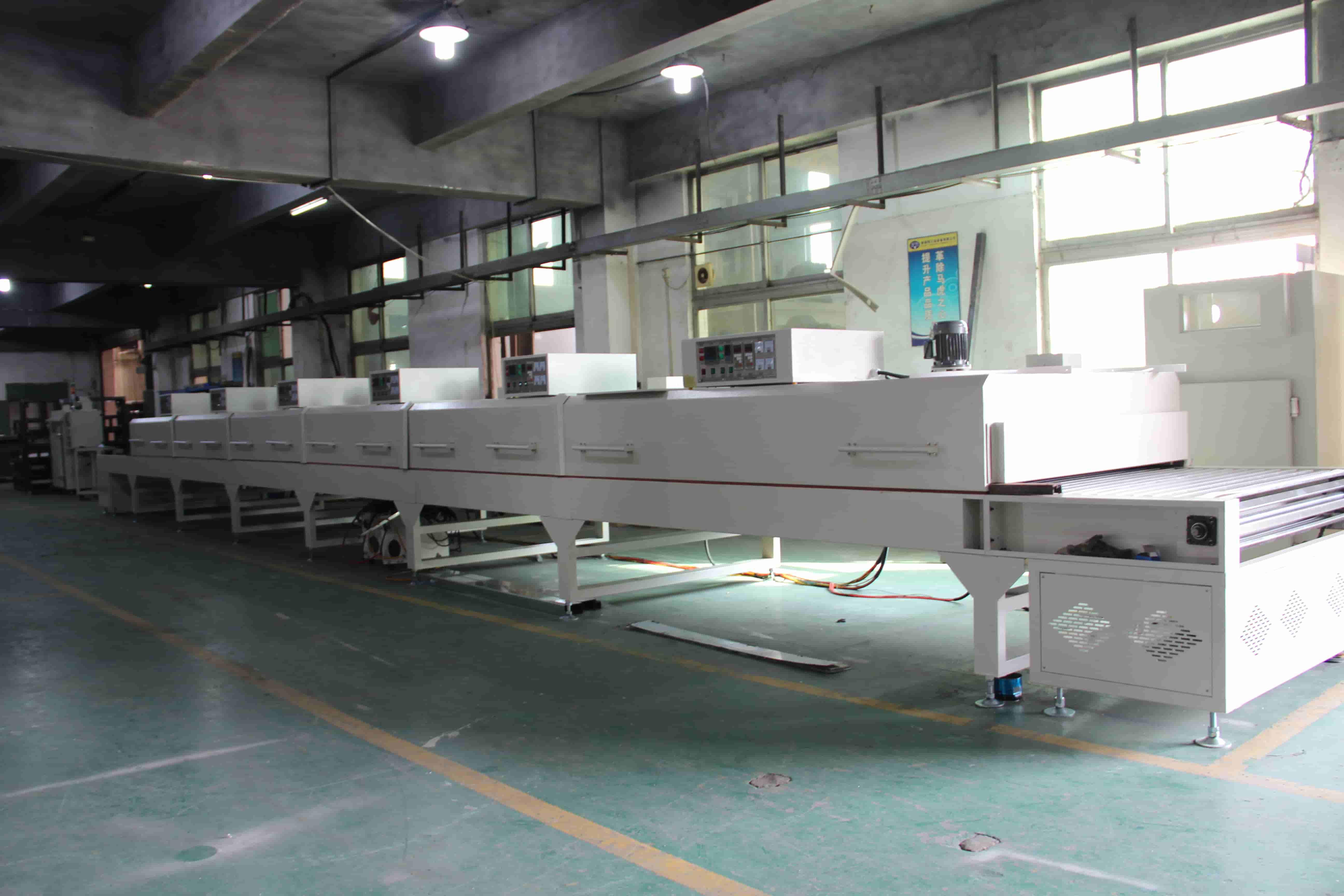

The drying section is 13,000mm long and divided into six sections. The first section, facing the feed area, is 3,000mm long, and the remaining five sections are 2,000mm long. Adjustable baffles are installed at the front and rear of the drying section, and each section's cover can be independently raised for easy maintenance.
The feed section is 100mm long. 0mm, discharge section length 2000mm;
3. Temperature range: Adjustable from room temperature to +280°C (operating temperature 240°C);
4. Instrument display accuracy: ≤±0.1°C;
5. Instrument temperature fluctuation: ≤±1°C;
6. Temperature uniformity: ≤±5°C (no-load);
7. Heating rate: ≤8°C/min;
8. Casing temperature: Equipment temperature within 240°C, casing temperature not exceeding room temperature +30°C, excluding the furnace mouth and joints;
9. Power supply: Three-phase five-wire, 380V, 50Hz;
10. Total power: 170kW
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
