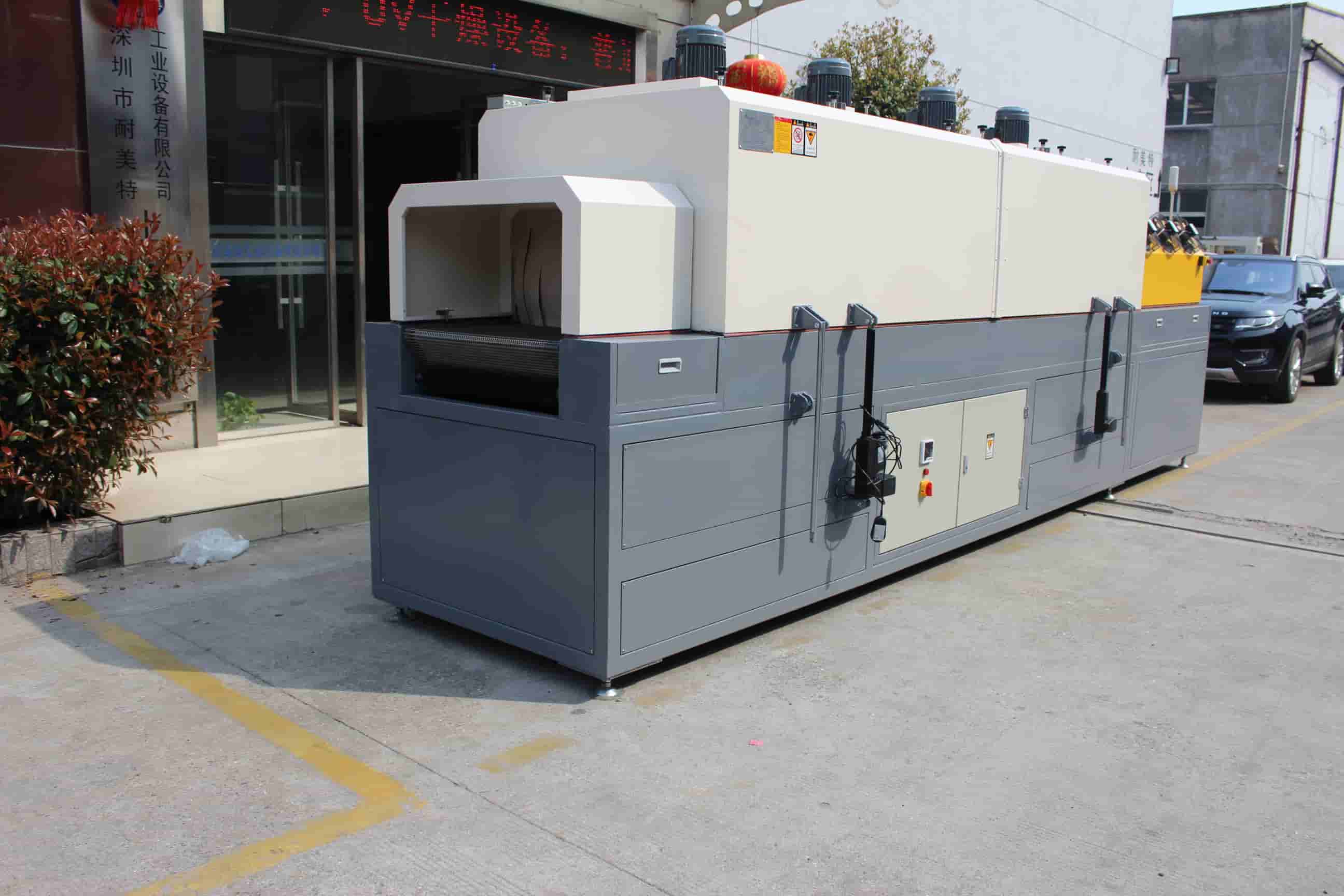

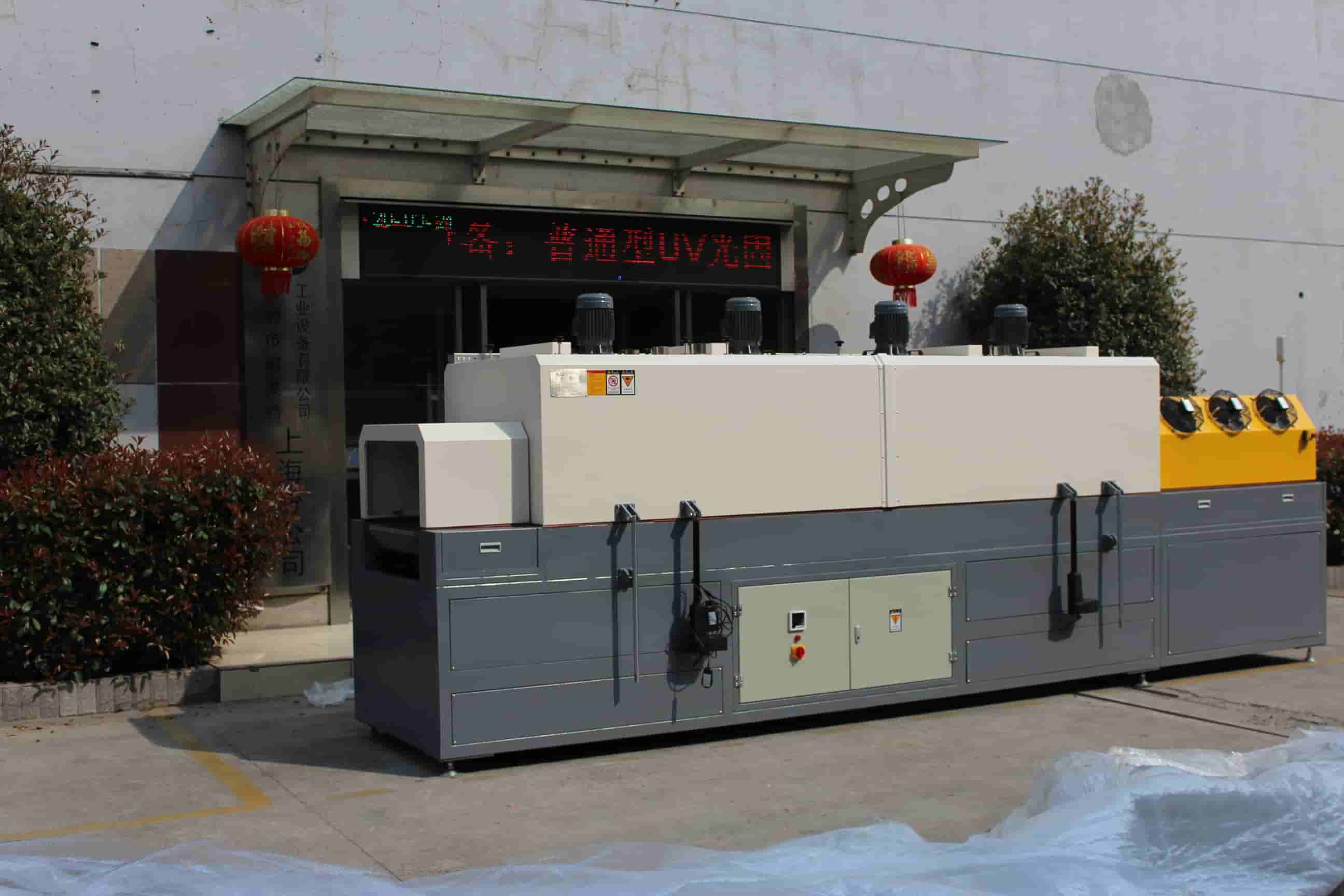

NMT-SDL-855 Heat shrink film machine tunnel furnace

Specifications:

NMT-SDL-855
1. Inner Tank Dimensions: 4000mm L x 450mm H x 820mm W, Conveyor Chain Height 1150±50mm;
2. External Dimensions (approximate): Total Length 6040mm x Height <2500mm x Width <1235mm.
3. Product Size: 330ml, 6*4, 3*4*2, 3*5*2 for 480ml, 6*4, 3*4*2, 3*5*2 for 1500ml, 4*3 for 60 bags/min;
4. Temperature Range: Room Temperature to +250°C;
5. Heating Rate: 6°C/min;
6. Casing Temperature: Temperature rise shall not exceed +15°C above ambient temperature, with the overall temperature within 55°C.
7. Air Circulation: High internal airflow, with bottom-to-bottom circulation and top-to-bottom return air.
8. Power Supply: Three-phase, five-wire, 380V, 50Hz;
9. Reference Power: Approximately 100kW.
