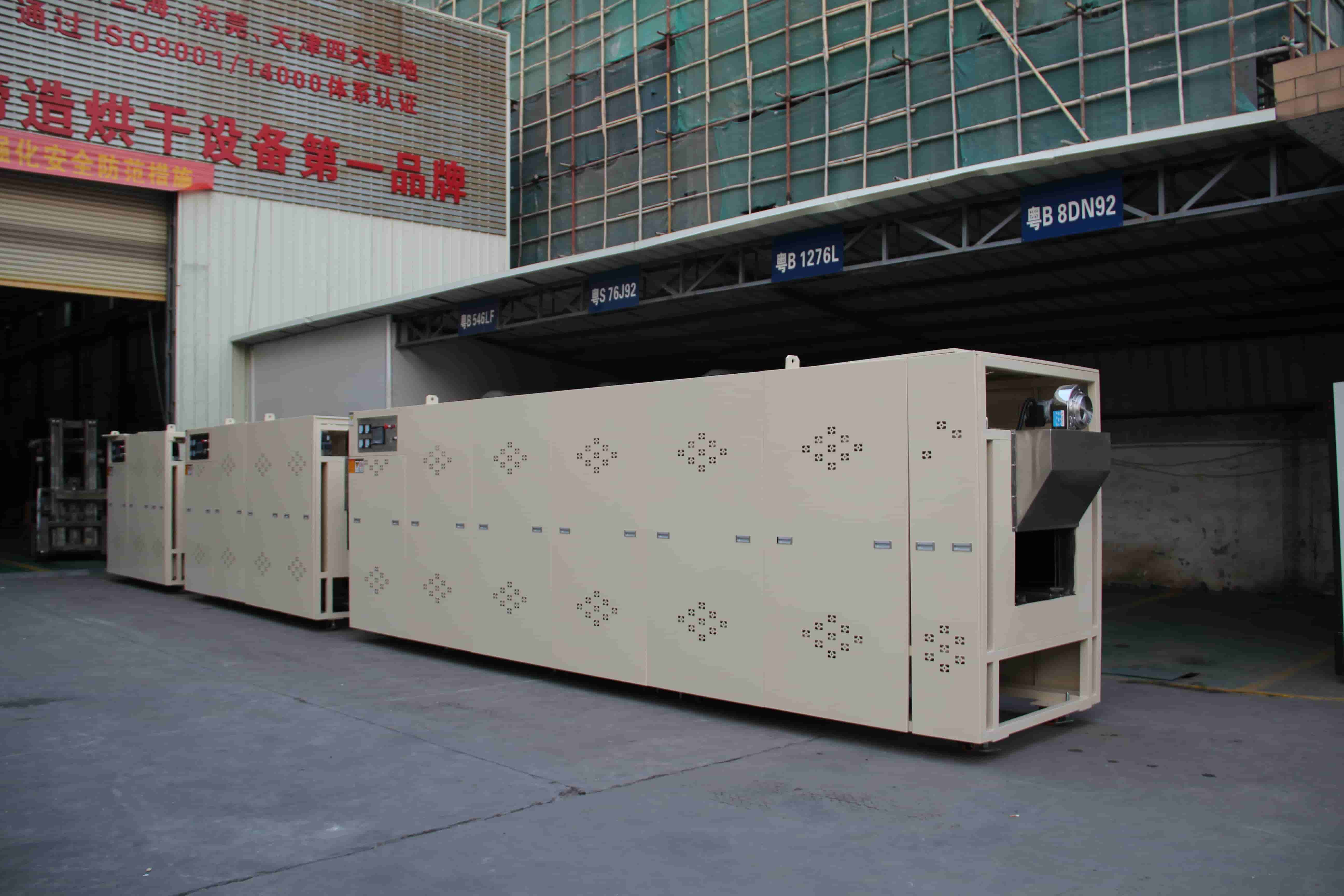

NMT-SDL-511 Battery capacitor tunnel furnace

Specifications:

NMT-SDL-511

1. Inner Dimensions: Length 6100mm * Height 180mm * Inner Width 680mm (Material: SUS304, bright side facing the conveyor);
2. External Dimensions (approximate): 1. Length 6100mm * Height 1880mm * Width 1340mm, height from floor to conveyor surface 850 ± 30mm (Huake provides conveyor design drawings, supplier provides mounting hardware inside the box);
3. Temperature Range: Room Temperature +10°C to 300°C;
4. Temperature Fluctuation: ±1°C;
5. Temperature Uniformity: ±5°C (tested at constant temperature, no-load), (temperature measurement point on conveyor surface);
6. Heating Rate: From room temperature to operating temperature within 15 minutes;
7. Casing Temperature: Temperature rise shall not exceed +15°C above ambient, excluding areas around joints. 8. Hot air circulation: Top outlet, bottom return (air velocity 0.8 m/s). The fan unit and heating module must be easily replaceable and repairable.
9. Power supply: Three-phase five-wire, 380V, 50Hz.
10. Power consumption: 42kW.
