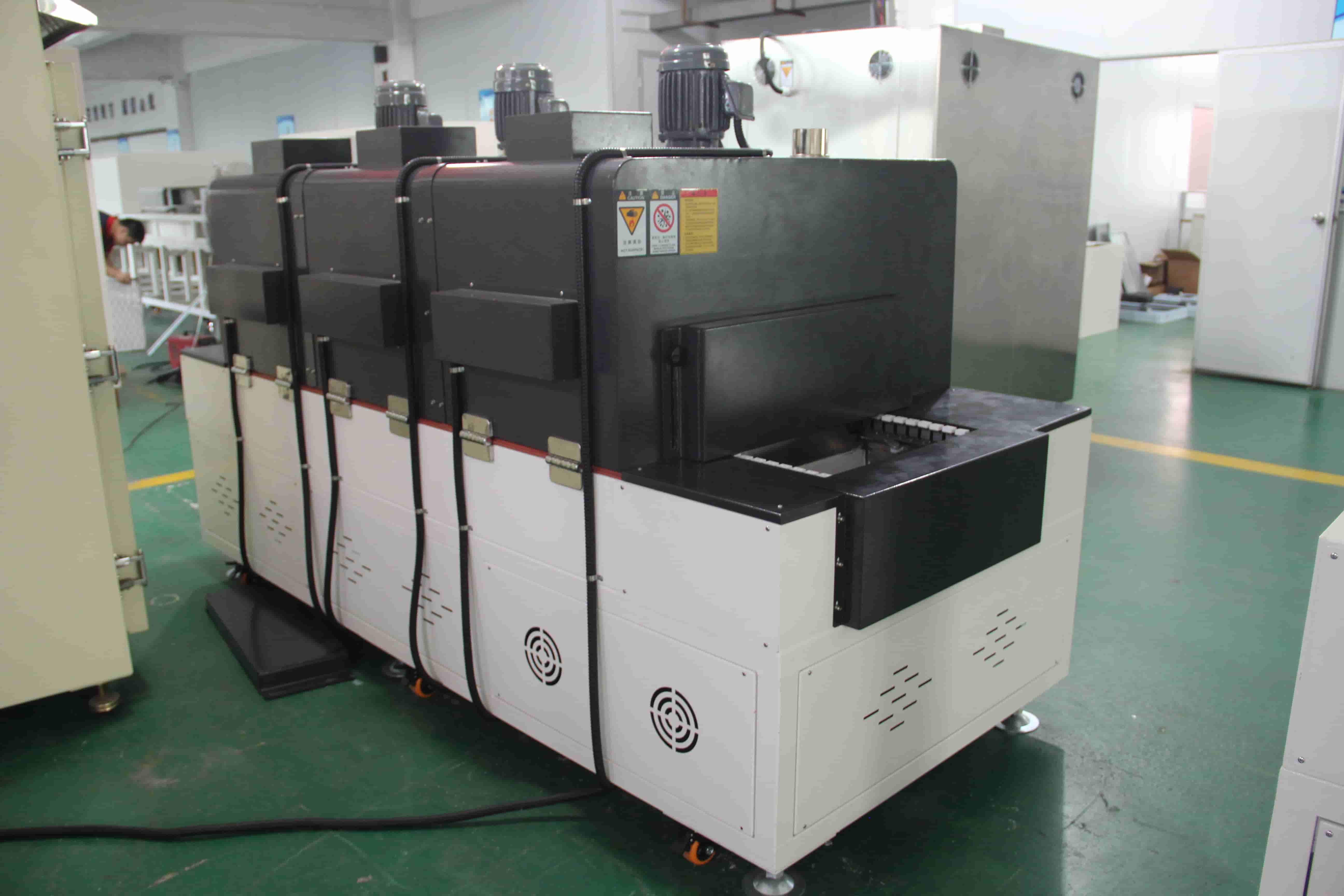

NMT-SDL-309 Glass heating tunnel furnace

Specifications:

NMT-SDL-309
1. Inner Chamber Dimensions: Drying Area: Length 1800mm x Net Height 150mm x Inner Width 520mm
2. Temperature Range: Room Temperature +20°C to +150°C (Adjustable)
3. Instrument Display Accuracy: ≤±0.1°C
4. Instrument Temperature Fluctuation: ≤±1°C
5. Temperature Uniformity: ≤±5°C (No-load)
6. Heating Rate: ≤8°C/min
7. Air Supply Method: Horizontal Circulation
8. Casing Temperature: Equipment temperature below 150°C, with the casing temperature no higher than room temperature +15°C, excluding the furnace opening and joints
9. Power Supply: Three-phase, five-wire, 380V, 50Hz
10. Total Power: Approximately 15kW
