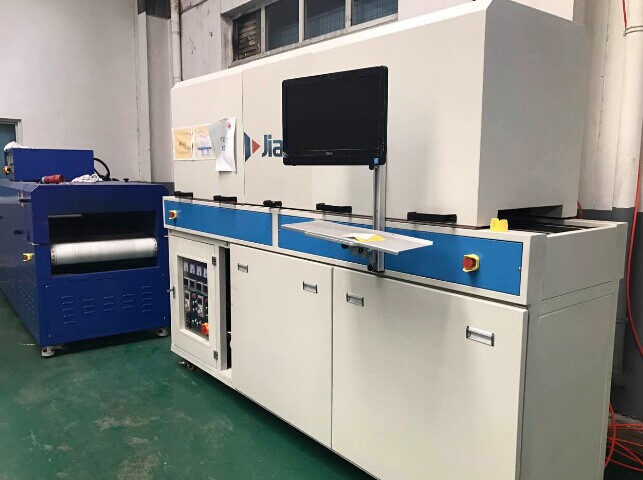

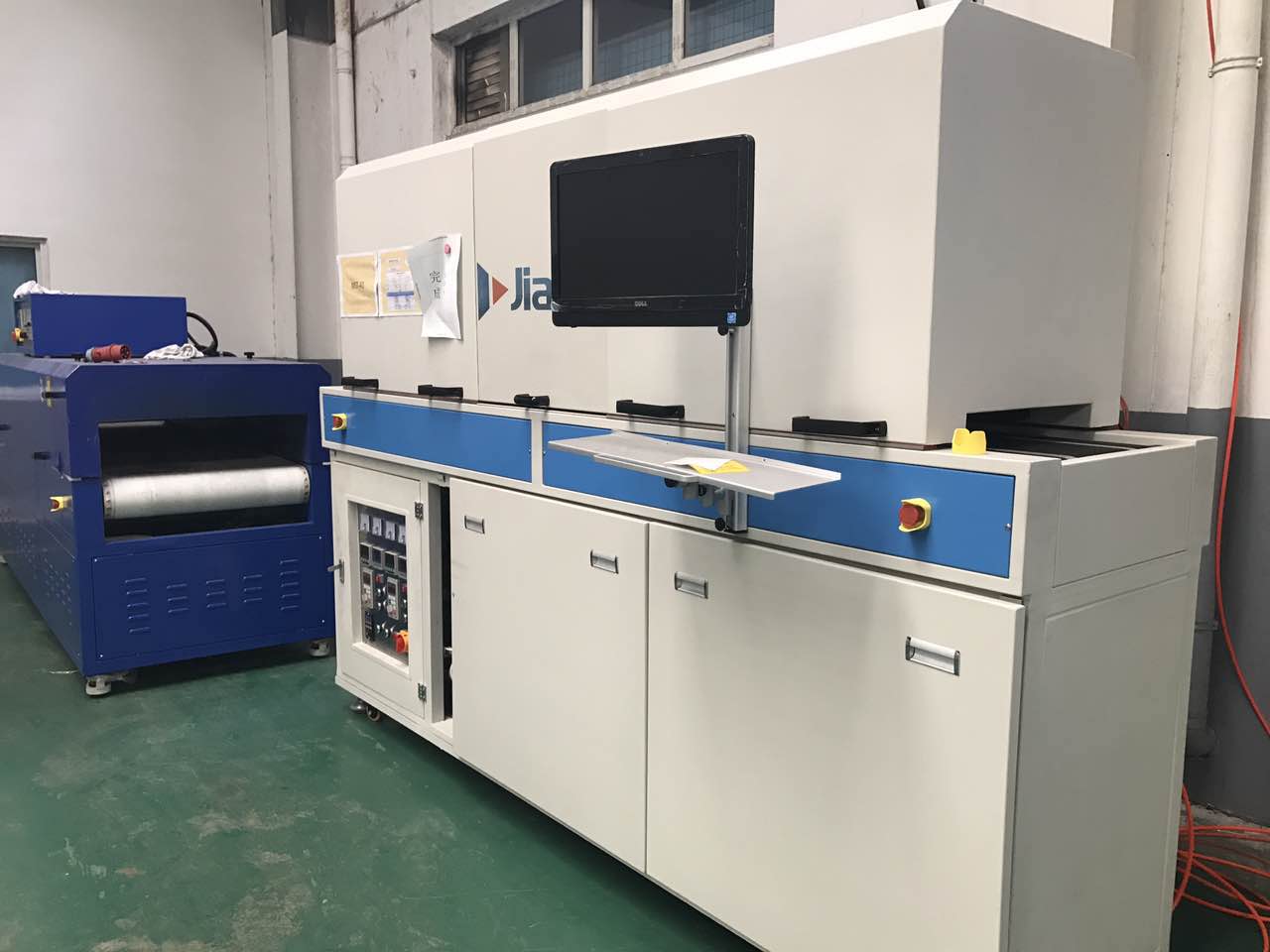

NMT-SDL-308 Glass heating tunnel furnace

Specifications:

NMT-SDL-308
1. Dimensions (approximate): 2800mm long, 800mm wide, and 1500mm high. The baking area at each end is 900mm, and the center spraying area is 600mm. The loading and unloading areas are 200mm each.
2. Temperature Range: Adjustable from room temperature +20°C to +300°C.
3. Temperature Uniformity: ≤±3°C (tested in constant temperature mode, no-load operation).
4. Temperature Error: ≤±3°C.
5. Heating Rate: ≤10°C/min (tested in no-load operation).
6. Casing Temperature: No more than +15°C ambient temperature, ≤+20°C ambient temperature around the door.
7. Air Circulation: Three-sided, high-volume forced air circulation.
8. Power Supply: Three-phase, five-wire, 380V, 50Hz.
9. Total Power: 30kW.
