NMT-RQ-8307
1. Inner Chamber Dimensions: Width 2925mm * Height 1400mm * Depth 3048mm;

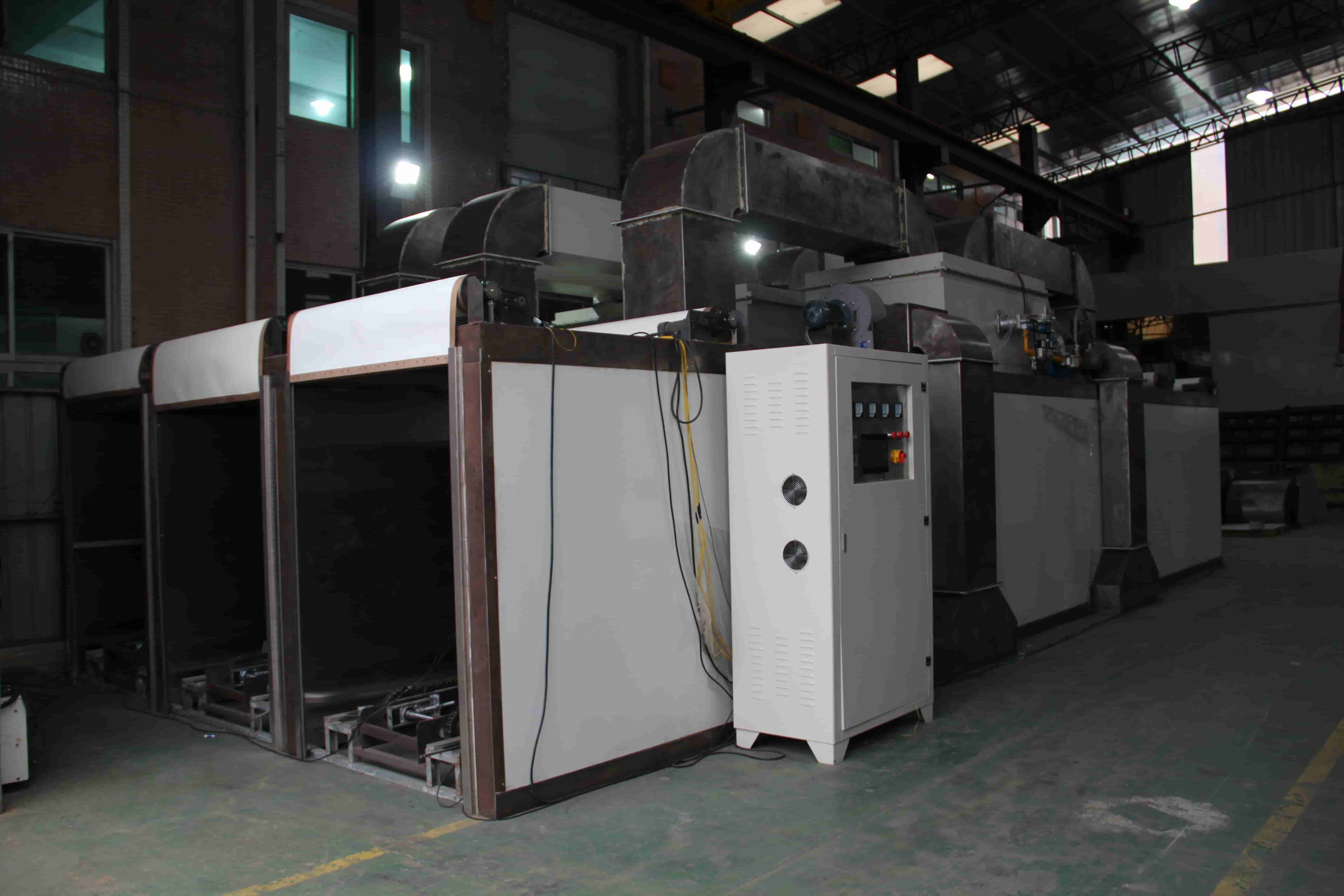

2. External Dimensions: Width 3125mm * Height 2950mm * Depth 9448mm. Two carts can be placed side by side in the oven, and the baking time can be set independently (see attached image);
3. The loading area is 1500mm long and features a ramp for easy access to the buffer area;
4. The buffer areas at both ends are 1700mm long and each has a lift platform for easy access to and from the drying area. A 0.75kW high-temperature exhaust fan is installed on the oven cover;

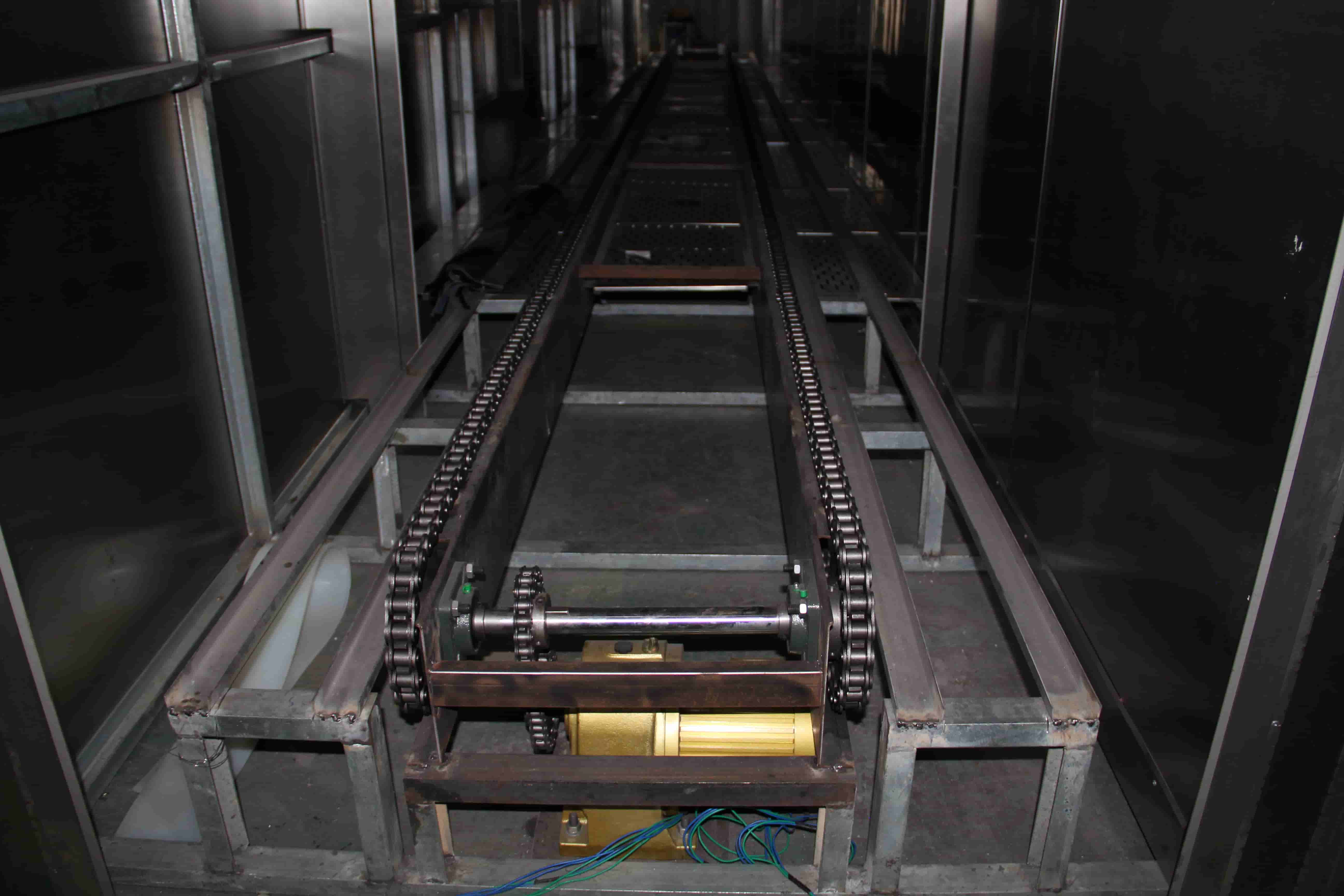

5. The drying area is 3048mm long and features insulated roller shutters at the front and rear, sensors, and a conveyor chain at the bottom;
6. The unloading area is 1500mm long and features a ramp. , allowing for easy unloading of materials from the cart.
7. Temperature Range: Adjustable from room temperature to +150°C (operating temperature 80°C);
8. Temperature Fluctuation: ≤±1°C;
9. Temperature Uniformity: ≤±3°C (after 30 minutes of constant temperature, no-load or full-load operation);
10. Heating Rate: ≤8°C/min;
11. Casing Temperature: Casing temperature must not exceed room temperature +10°C, excluding the door seams.
12. Power Supply: Three-phase, five-wire, 380V, 50Hz;
13. Total Power: Approximately 10kW
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
