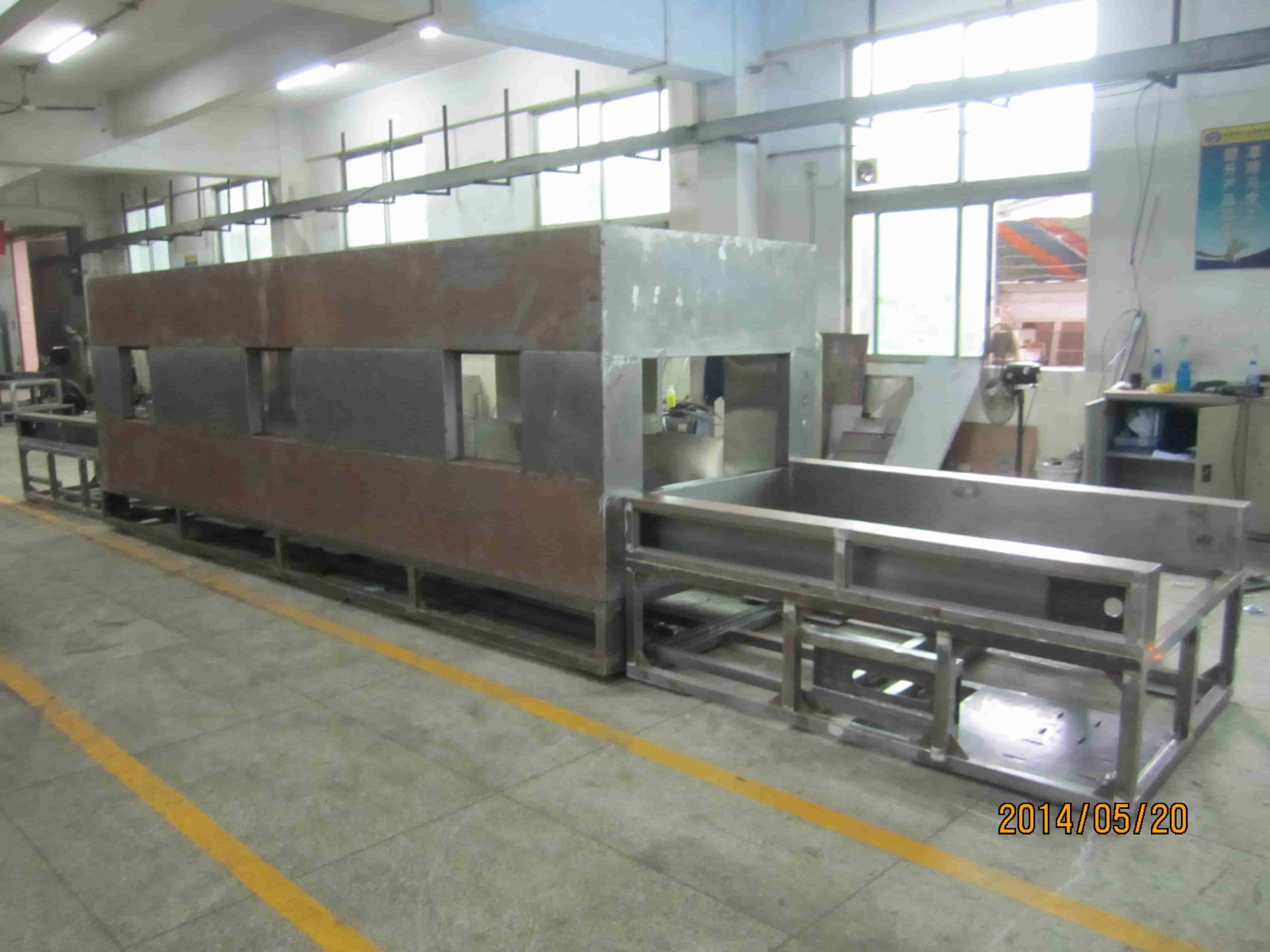

1. Industrial Oven Name: 9-meter Tunnel Gas Oven
2. Industrial Oven Model: NMT-RQ-8302
2. Inner Chamber Dimensions: Drying Zone Length 5000mm * Feed Port Height 500mm * Conveyor Belt Width 1050mm
3. External Dimensions: Total Length 9000mm * Height 3040mm * Width 1500mm; Feed Section Length 1800mm, Drying Section Length 5000mm (in one section), Receiving Section Length 1700mm; Conveyor Belt Height 815mm
4. Temperature Range: Adjustable from room temperature to 120°C, typically between 80°C and 100°C
5. Temperature Fluctuation: ≤±1°C;
6. Temperature Uniformity: ≤±5°C;
7. Heating Rate: ≤40 minutes from room temperature to 120°C;
8. Casing Temperature: Furnace surface temperature ≤40°C (when ambient temperature ≤30°C);
9. Protection Devices: PID auto-tuning, automatic constant temperature, automatic timing, timed power-off alarm after reaching a certain temperature, over-temperature power-off, leakage protection, motor overload protection, control circuit fuses, no-fuse switches, and other electrical accessories;
10. Intelligent temperature controller, PID auto-tuning, Dynamic calculation, LED display, and SSR solid-state relay output enable precise temperature control.
11. The inner chamber is made of mirror-finished 304# stainless steel; the outer box is made of 2.0mm cold-rolled steel with a high-temperature powder coating.
12. The oven air duct is designed according to product characteristics, ensuring excellent temperature uniformity.
13. Fast heating time and stable and accurate temperature.
14. First-class domestic thermal insulation and heat isolation technology for excellent sealing performance.
15. Unique thermal insulation device for the fan motor.
16. Energy-saving and power-saving, with strong safety performance.
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
