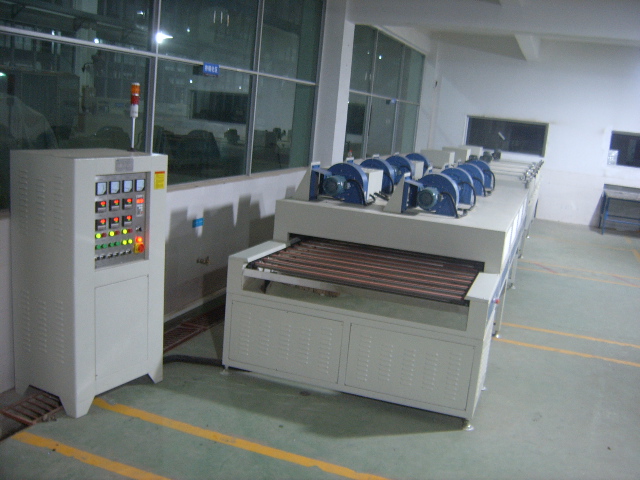

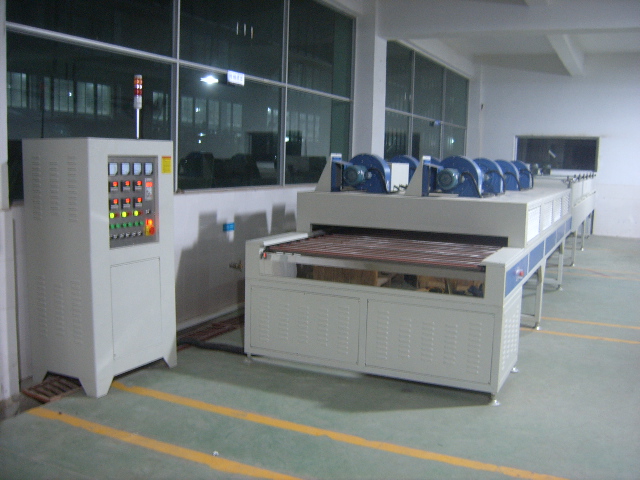

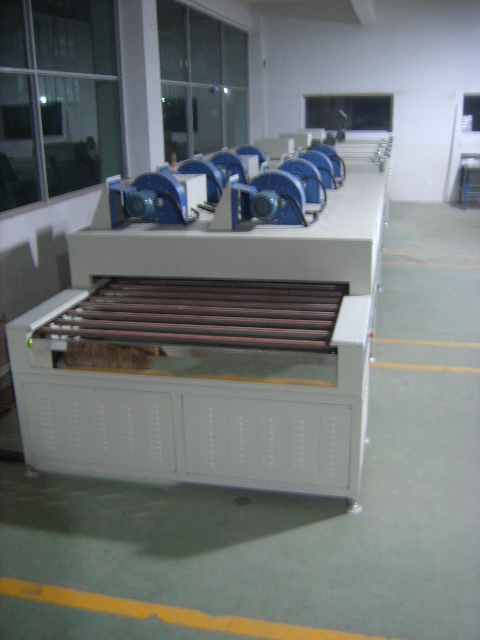

NMT-SDL-306 Glass heating tunnel furnace

Specifications:

NMT-SDL-306
Overall Dimensions: L*W*H (mm): 23280*1970*1510;
Conveyor Belt Width: 1600mm;
Feed Port Height: 120mm, Adjustable;
Conveyor Belt Height from Ground: 850mm;
Drying Zone: 6 sections, 2 meters each;
Cooling Zone: 2 sections, 1.5 meters each;
Conveyor Belt Material: 1.5mm thick SUS304# stainless steel flat tubes, with a center-to-center spacing of 152.4mm;
Temperature Control: Within 250°C;
Material: Exterior: 2.0mm thick cold-rolled steel plate / Inner: 1.5mm thick 304# stainless steel plate;
Total Power: 120kW (380V 50Hz).
