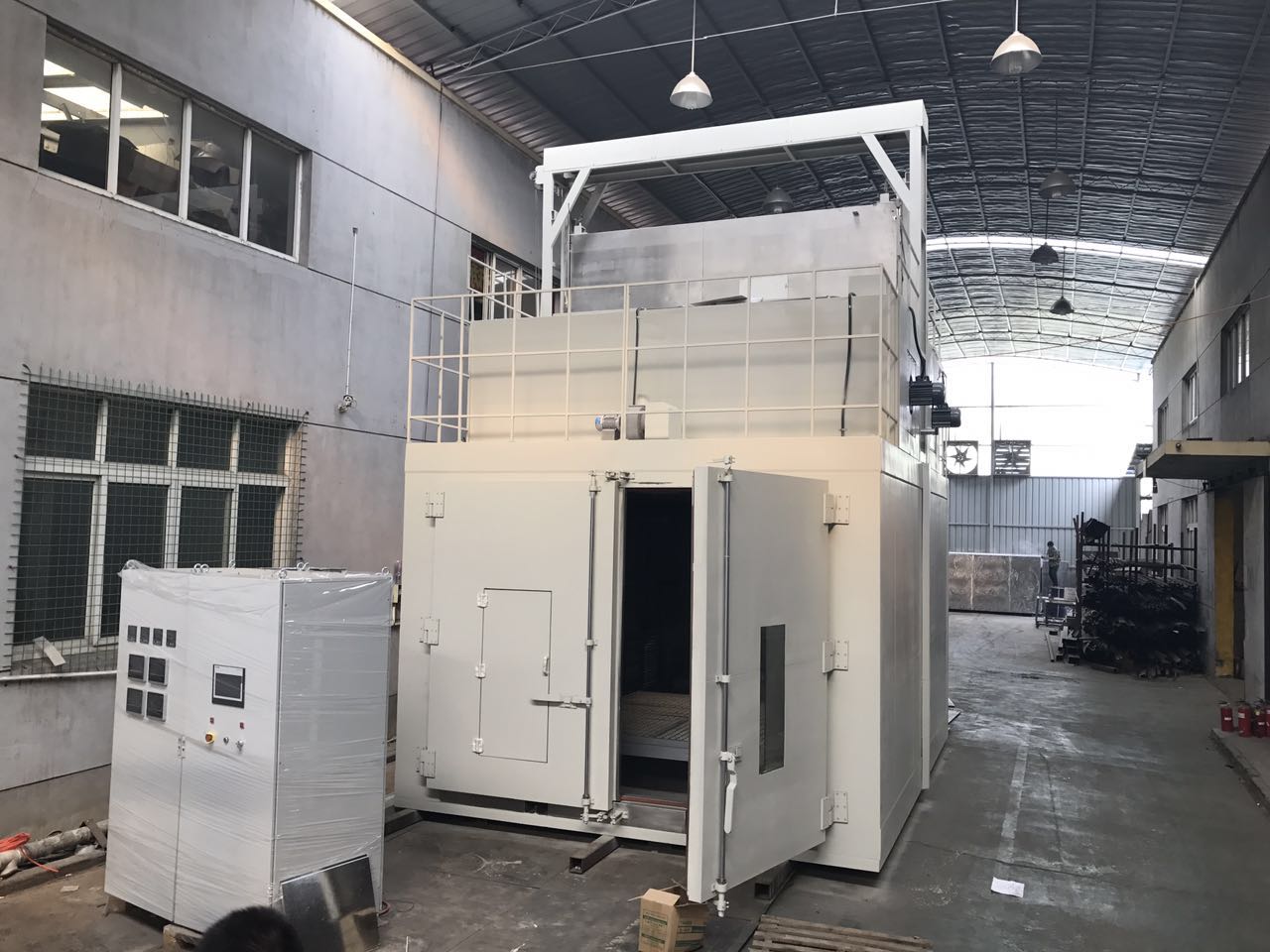

NMT-TZ-73 Carbon fiber composite material drying room

Specifications:

NMT-TZ-73
1. Internal Dimensions: Width 3000 mm * Height 2500 mm * Depth 5000 mm.
2. External Dimensions: Adjustable based on supplier requirements while maintaining internal dimensions.
3. Operating Temperature Range: Room Temperature to +180°C.
4. Design Temperature Range: Room Temperature to +200°C.
5. Temperature Fluctuation During Holding Phase: ≤±1°C.
6. Temperature Uniformity: ≤±3°C.
7. Instrument Display Accuracy: ±0.1°C.
8. Instrument Control Accuracy: ±0.1°C.
9. Heating Rate: No-load: From room temperature to 200°C in 30 minutes (empty furnace acceptance); Full-load: From room temperature to 150°C in 30 minutes (calculated based on two tons). Heating rate adjustable: 0.5-8°C/min.

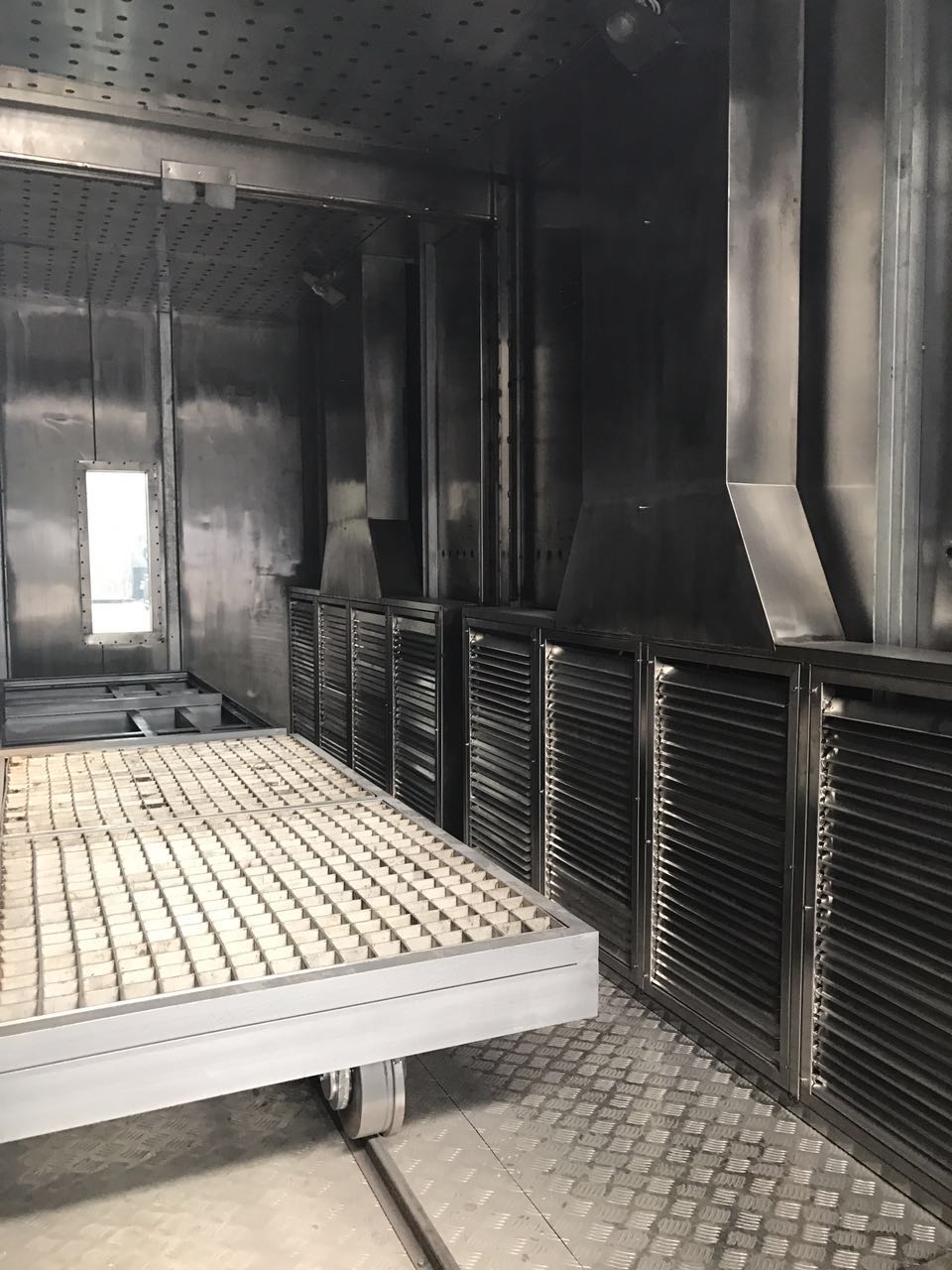

10. Casing Temperature: The temperature rise shall not exceed +10°C above ambient, excluding the door area. 11. Air supply method: Circulating fan, with return air duct inside the oven, effectively ensuring the uniformity of space temperature. Recommended air direction: horizontal air supply on both sides, return air on the top.
