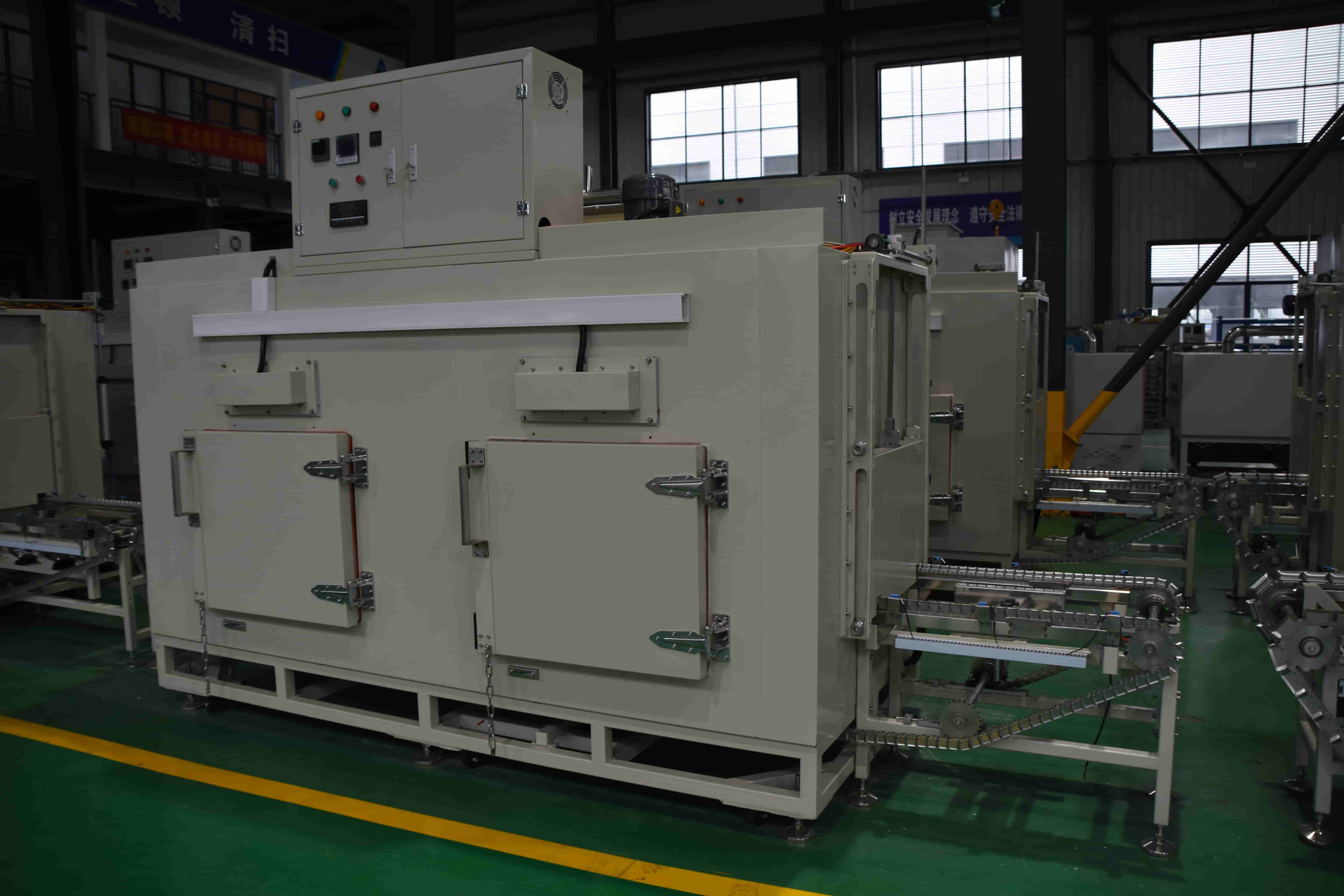

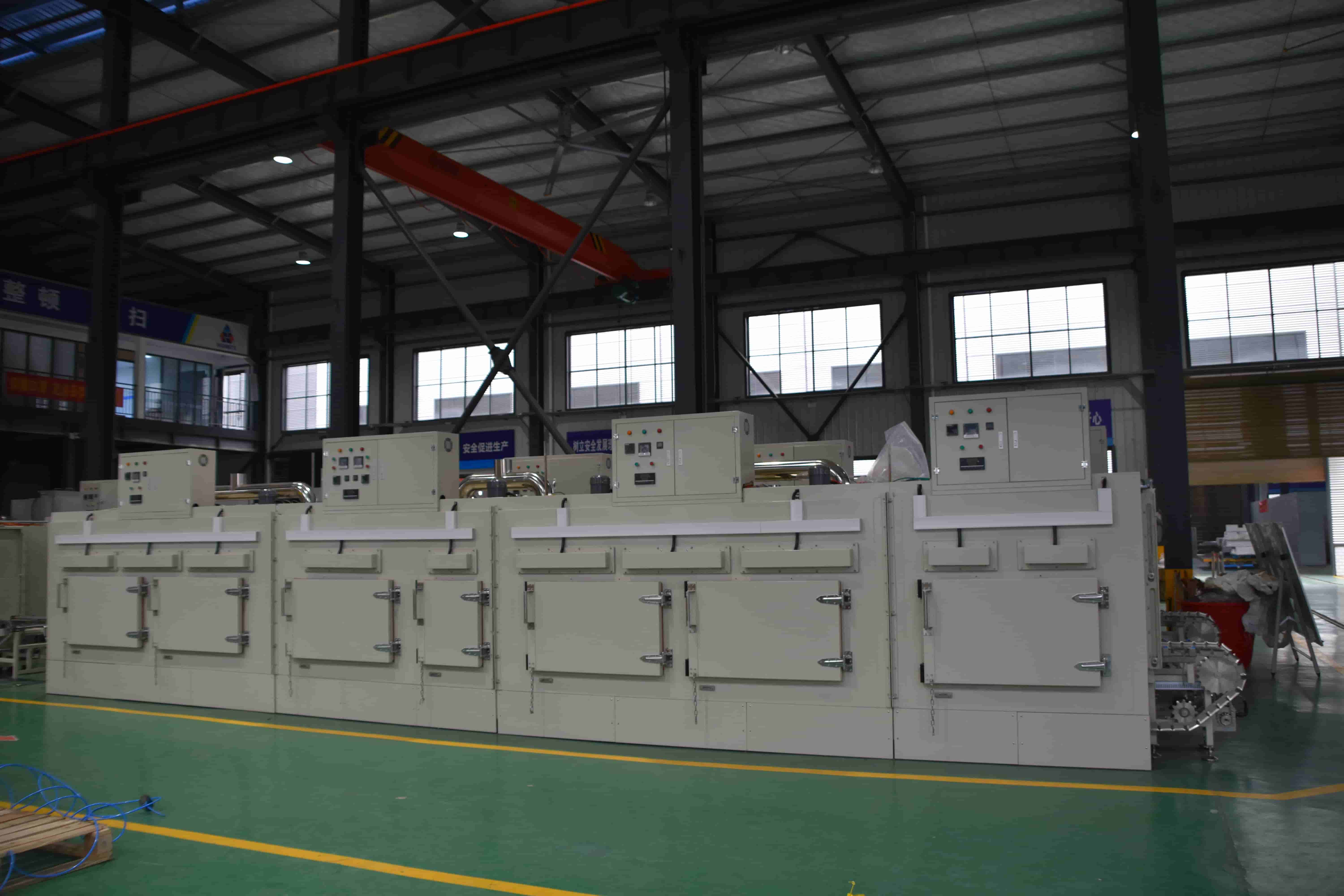

NMT-ZN-629 Lithium battery drying tunnel furnace

Specifications:

NMT-ZN-629

1. Inner Tank Dimensions: Width 800mm * Height 660mm * Depth 1010mm;
2. External Dimensions (approximate): Width 1220mm * Height 1690mm (excluding motor height) * Depth 1220mm;
3. Temperature Range: Adjustable from room temperature +20°C to +200°C, operating temperature approximately 125°C;
4. Instrument Temperature Fluctuation: ≤±1°C;
5. Heating Rate: ≤8°C/min, reaching heating temperature within 30 minutes.
6. Air Circulation: Up and down circulation;
7. Power Supply: Three-phase five-wire, 380V, 50Hz;
8. Total Power: Approximately 15kW
