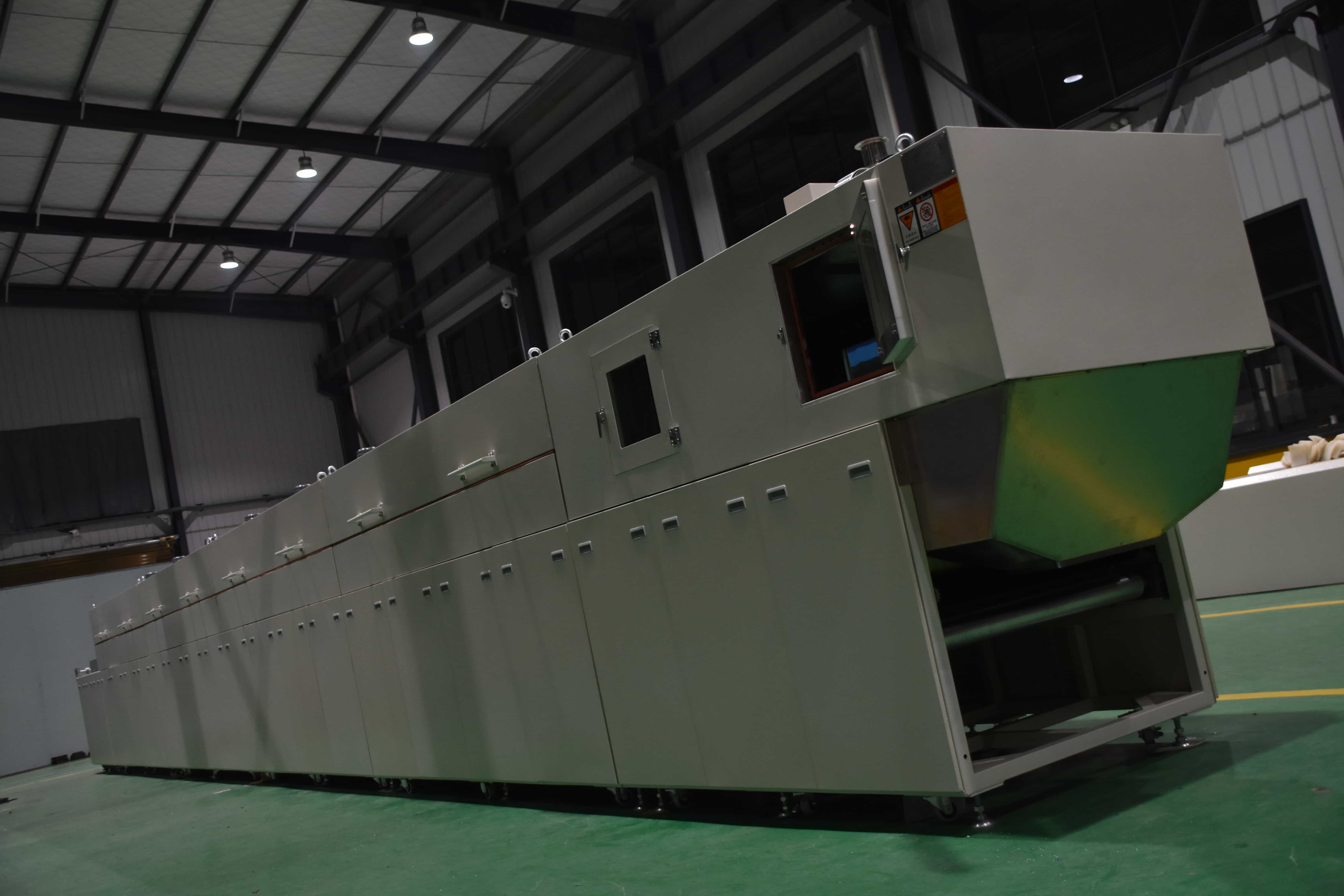

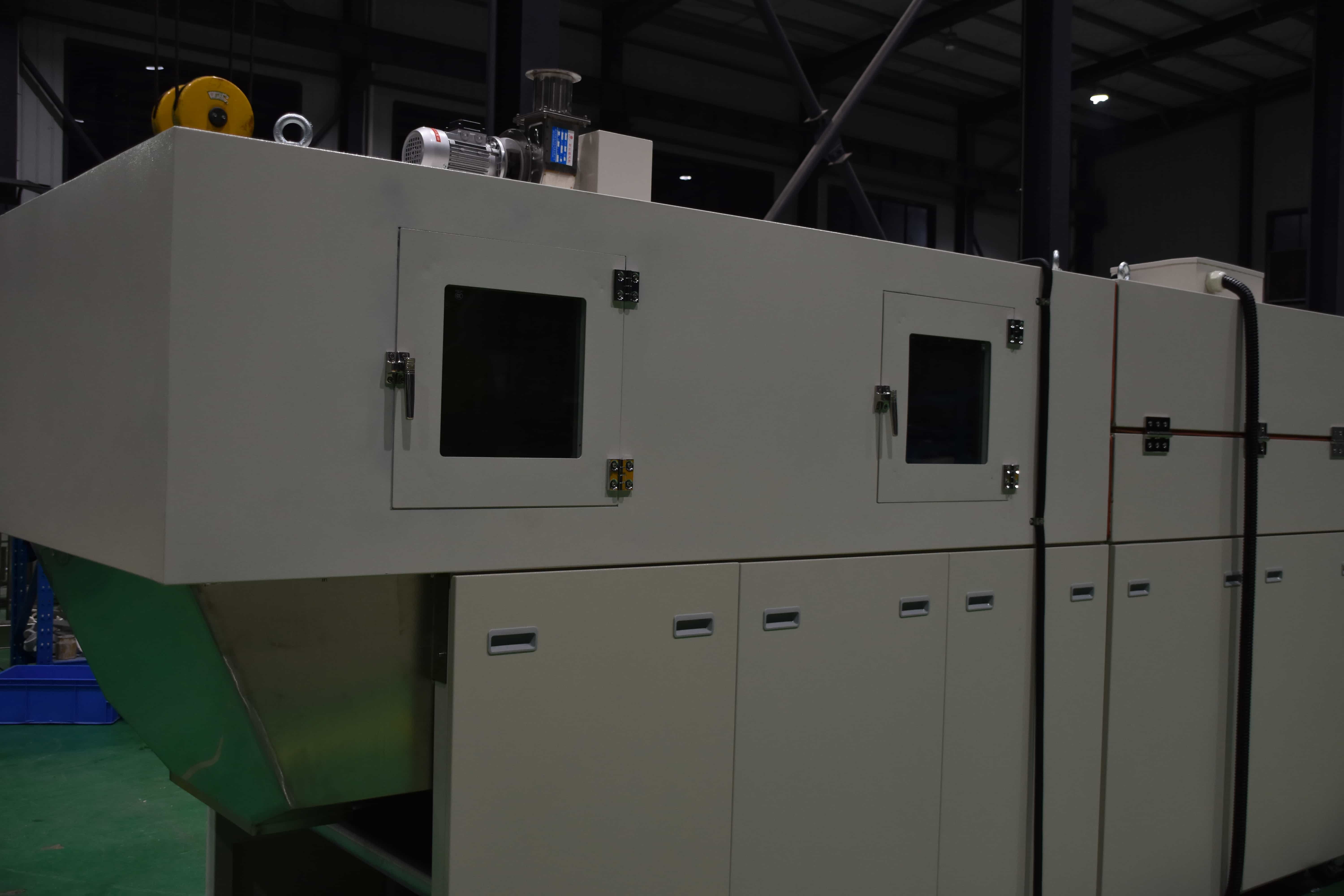

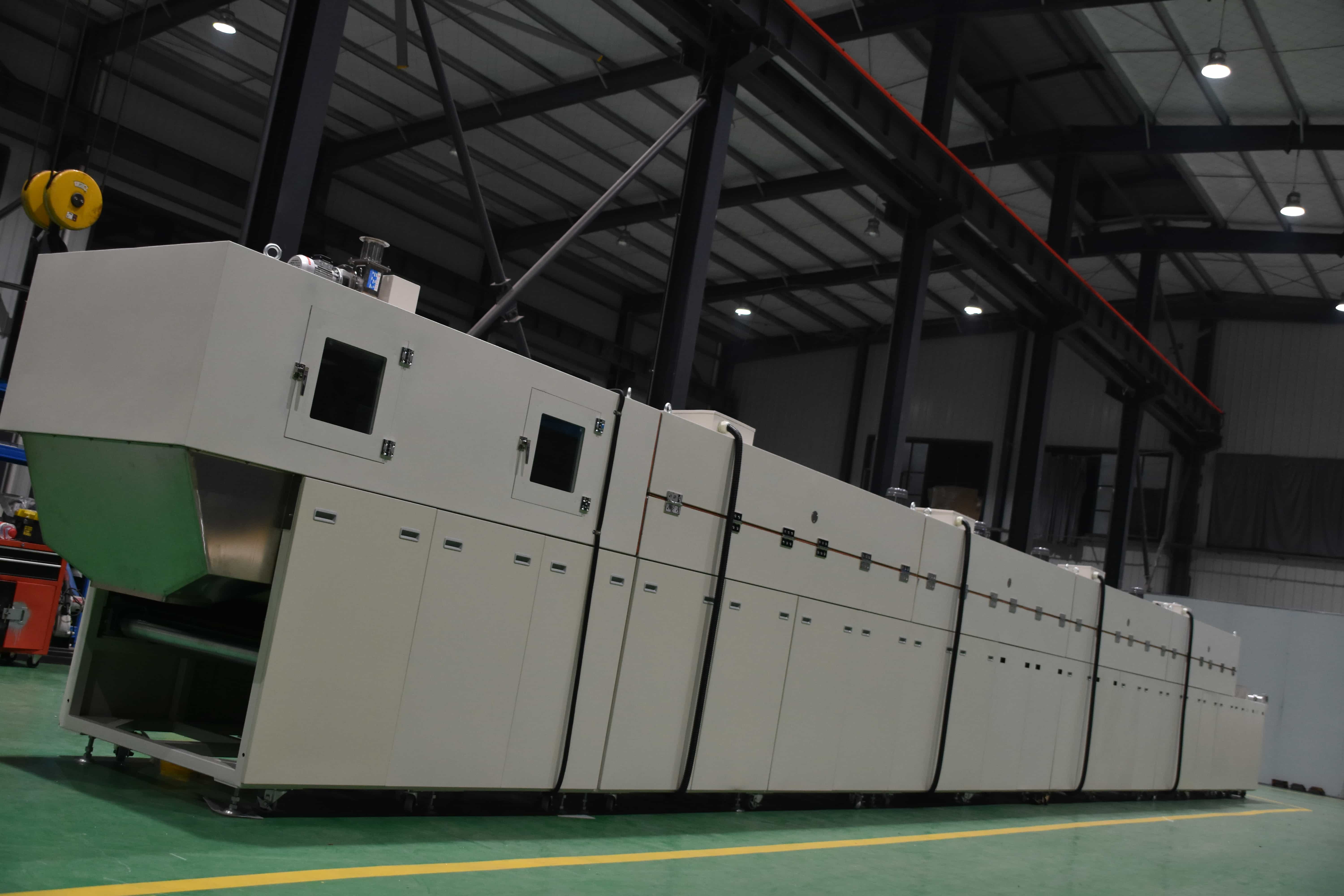

NMT-SDL-560 Powder moisture drying tunnel furnace

Specifications:

NMT-SDL-560
1. Inner Tank Dimensions: Heating Zone: 12,000mm L x 1,000mm W x 100mm H;
2. External Dimensions (approximate): Total Length: 16,500mm L x 2,000mm H x 1,230mm W; Feeding Section: 2,000mm long, Drying Section: 12,000mm long, divided into four sections, 3,000mm each; Discharging Section: 1,000mm; Conveyor Belt Height: 1,400±20mm above Ground Level;
3. Temperature Range: Room Temperature to +250°C;
4. Temperature Uniformity: ±5°C (tested at constant temperature, no-load);
5. Casing Temperature: Temperature rise shall not exceed +15°C above ambient, excluding areas around seams.
6. Power Supply: Three-phase, five-wire, 380V, 50Hz;
7. Power: 130kW
