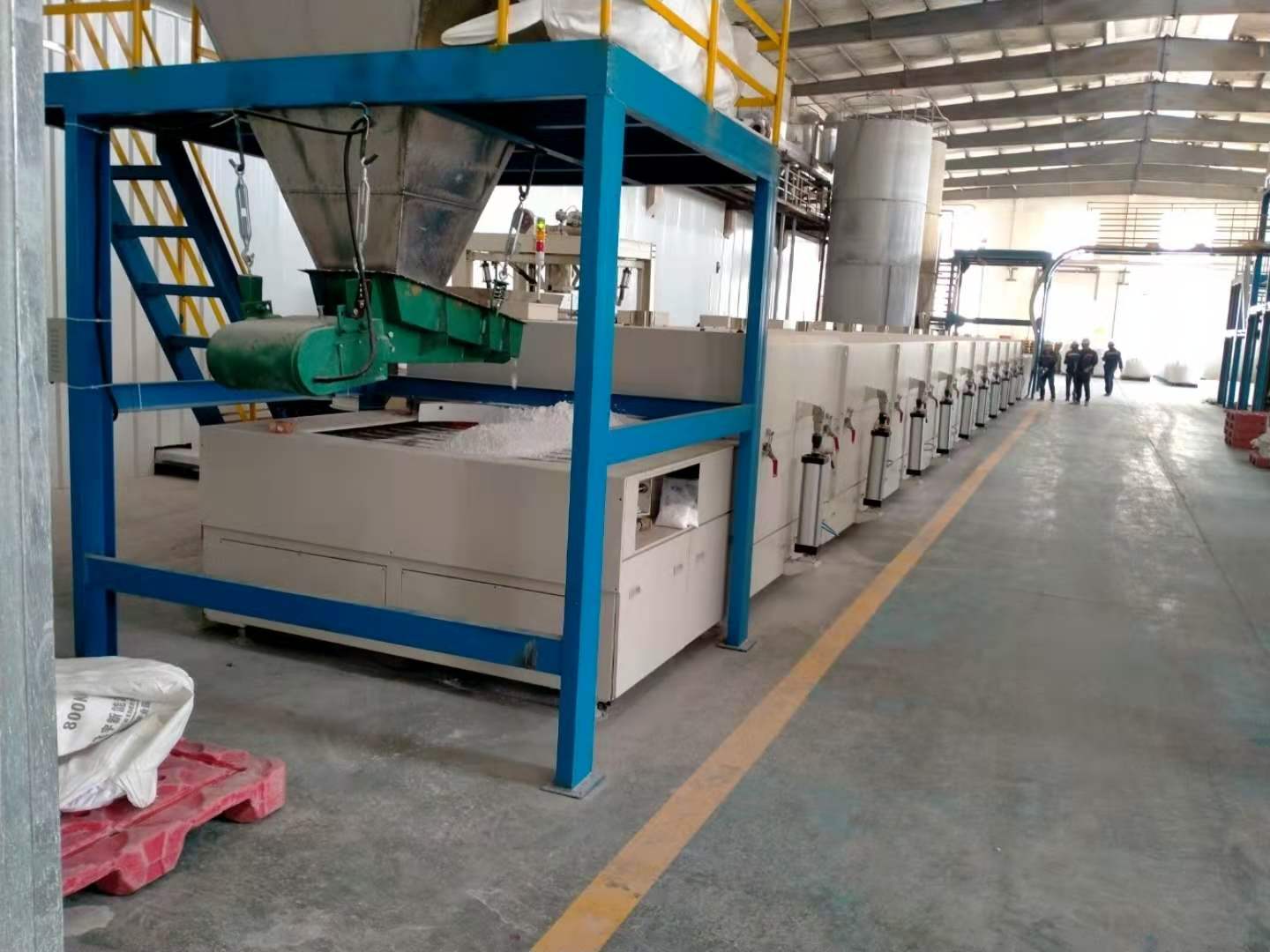

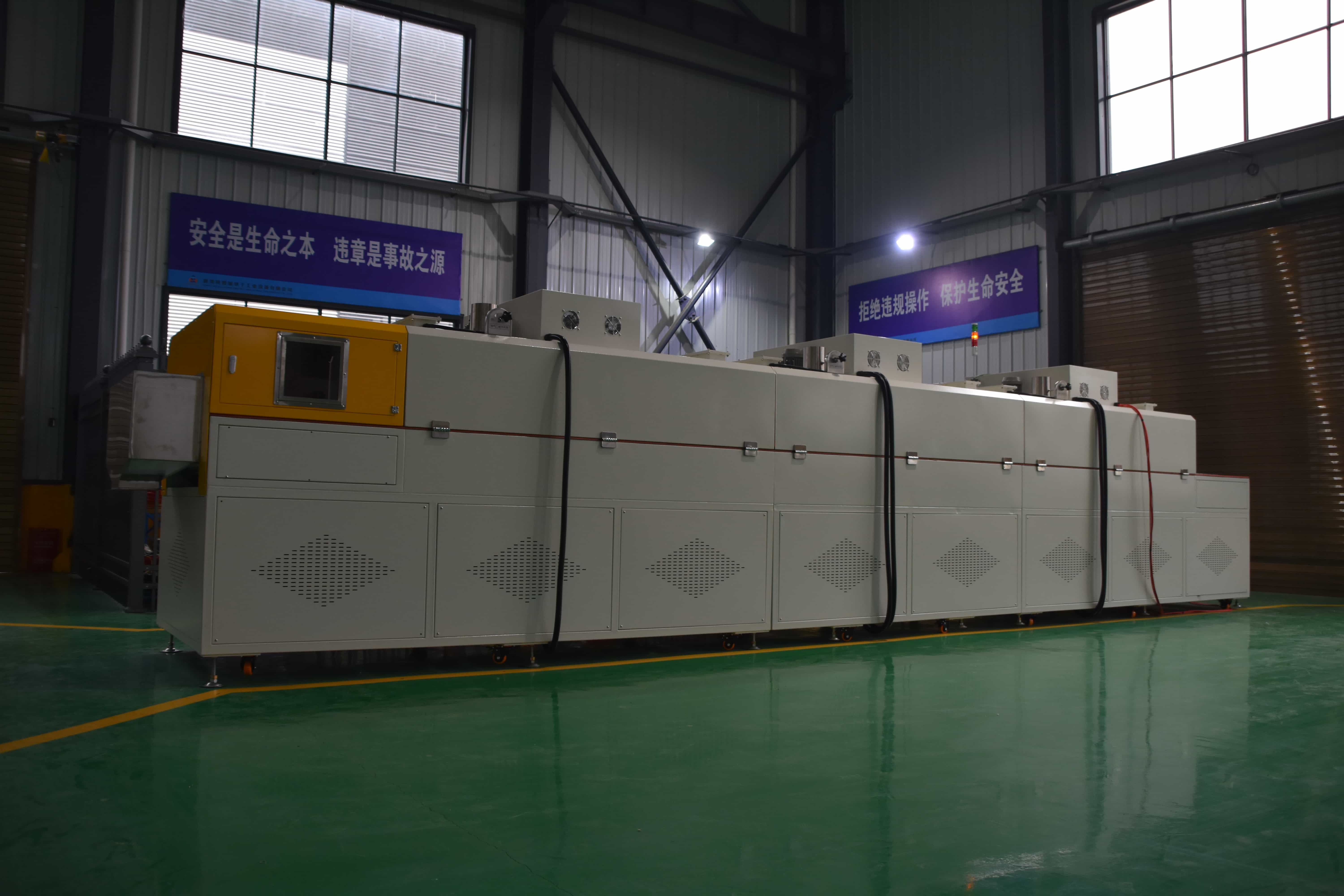

NMT-SDL-519 450 degrees high temperature baking battery powder moisture drying tunnel furnace

Specifications:

NMT-SDL-519
1. Inner Tank Dimensions: Heating Zone Length 20,000 mm * Feed Inlet Height 100 mm * Inner Tank Effective Width 1,400 mm; Stacking Width 1,200 mm.
2. External Dimensions (Approximate): Total Length 26,500 mm * Height 1,550 mm * Width 2,100 mm; Feed Section Length 1,500 mm, Drying Section Length 20,000 mm, Discharge Section Length 2,000 mm, Cooling Section Length 3,000 mm; Feed Conveyor Height 980 mm;
3. Temperature Range: Room Temperature +15°C to +500°C (Normal Operation: Within 450°C);
4. Temperature Fluctuation: ±1°C;
5. Temperature Uniformity: ±7°C (Tested at constant temperature, no-load);
6. Heating Rate: 8°C/min;
7. Casing Temperature: No more than +15°C above ambient temperature, excluding areas around joints. 8. Power supply: Three-phase five-wire, 380V, 50Hz;
9. Power: Approximately 400kW;
