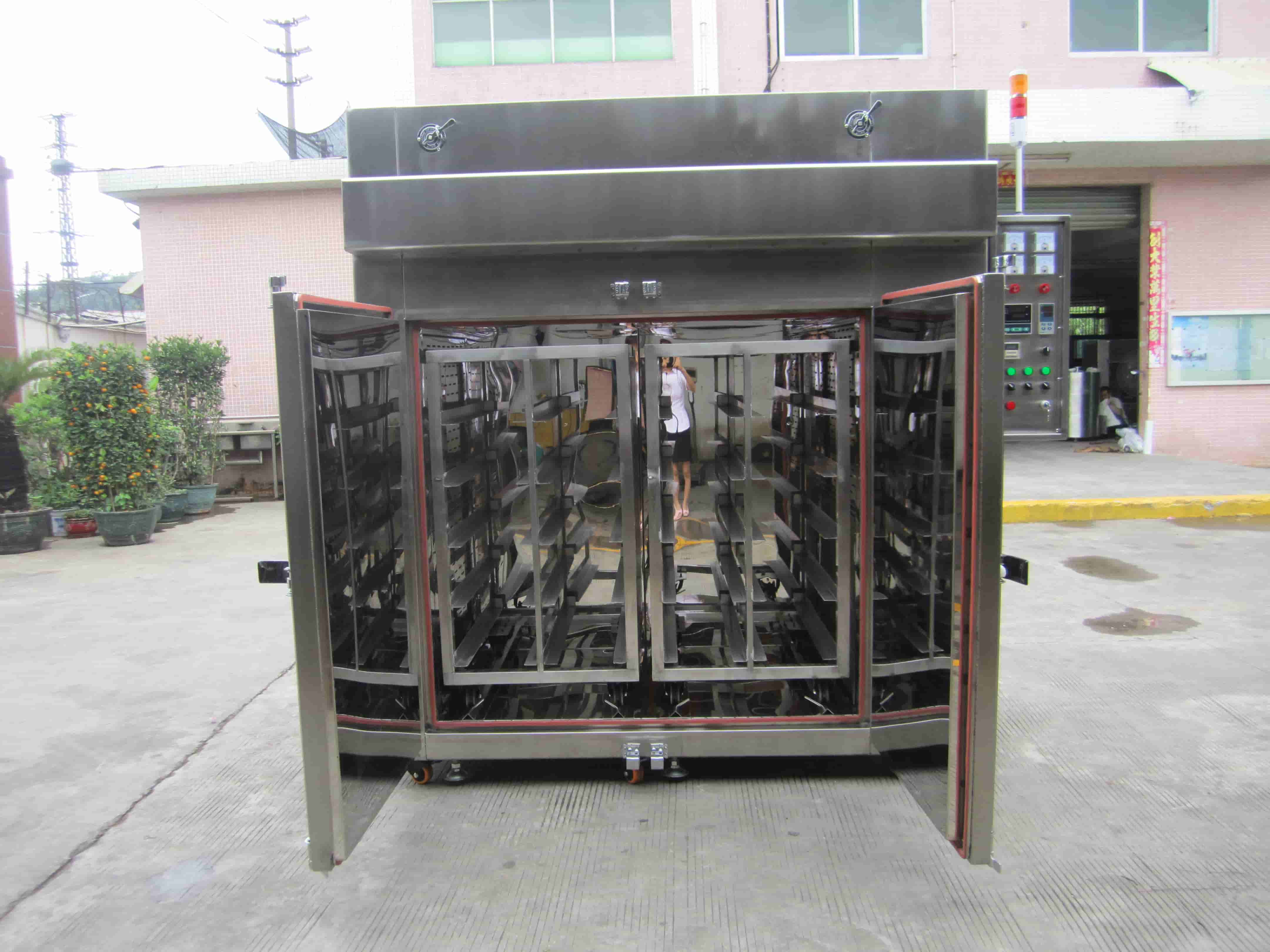

1. Industrial Oven Name: Medical Oven
2. Industrial Oven Model: NMT-YL-7907
3. Inner Chamber Dimensions: W1400 x D850 x H1300 (mm)
4. External Dimensions: W1950 x D990 x H2210 (mm)
5. Temperature Range: Room Temperature - 200°C (Normal Operation)
6. Heating Time: Up to 150°C ≈10 minutes
7. Temperature Uniformity: ±1.5% (no-load test)
8. Protection Devices: PID auto-tuning, automatic constant temperature, automatic timing, timed alarm and power-off upon reaching a certain temperature, over-temperature power-off, leakage protection, motor overload protection, and other control circuit fuses, no-fuse switches, and other electrical accessories.
9. Intelligent temperature controller with automatic PID calculation, LED display, and SSR solid-state relay output for precise temperature control.
10. The inner tank is made of mirror-finished 304# stainless steel, fully welded with argon arc welding to prevent dust from forming on the machine itself. The outer box is made of 2.0mm Cold-rolled steel sheets are powder-coated and painted at high temperatures.
11. Internal cleanliness reaches Class 1000 dust-free environments.
12. Double over-temperature protection ensures safety and reliability.
13. Oven air ducts are designed based on product characteristics, ensuring excellent temperature uniformity.
14. Fast heating time and stable and precise temperature.
15. First-class domestic thermal insulation and heat isolation technology for excellent sealing.
16. Low housing temperature minimizes impact on indoor ambient temperature.
17. Floor-standing or sloped cart design significantly reduces labor intensity.
18. Energy-saving and power-saving, with strong safety features.
19. Total power: 16 kW (380V 50Hz).
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
