NMT-YKL-6208

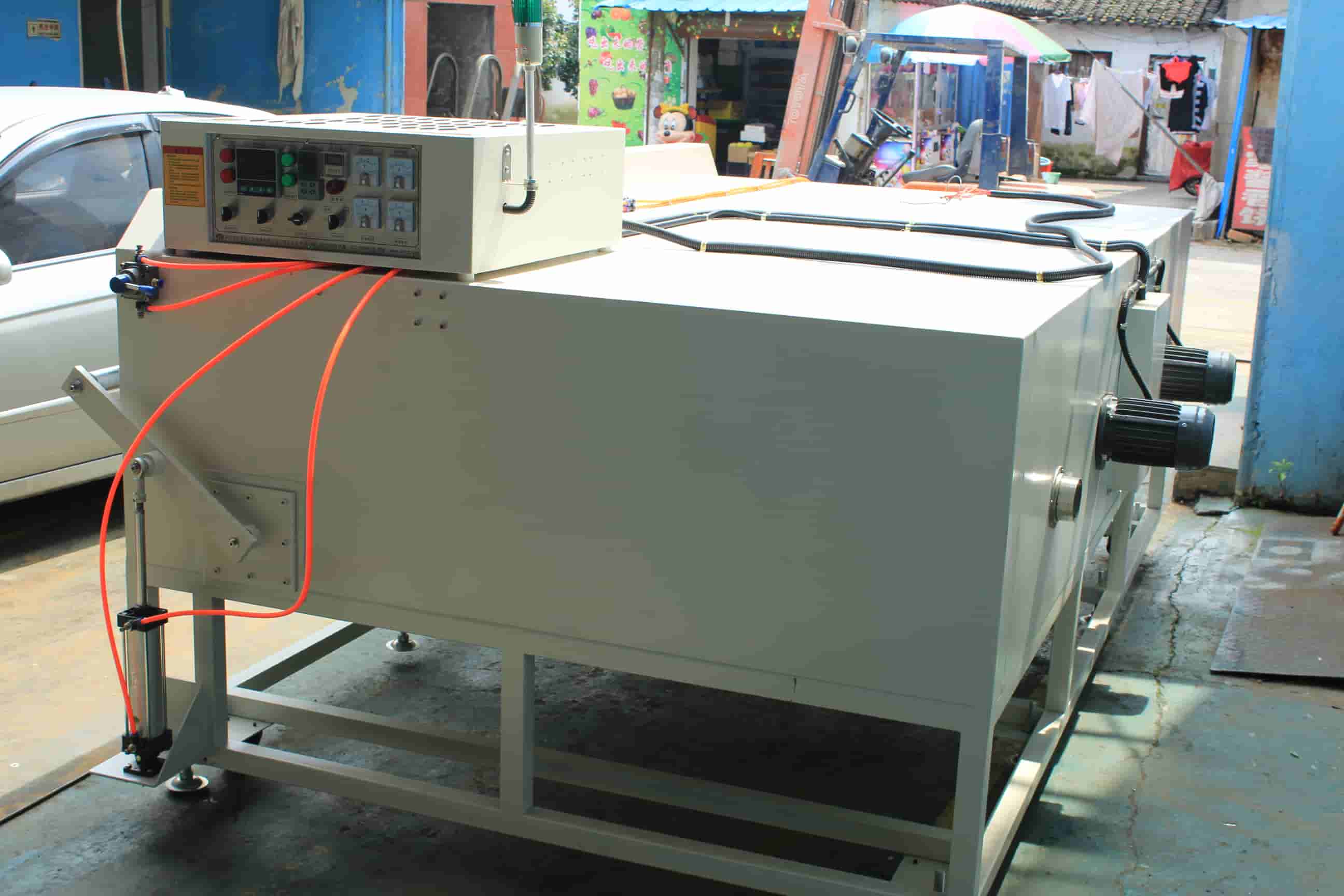

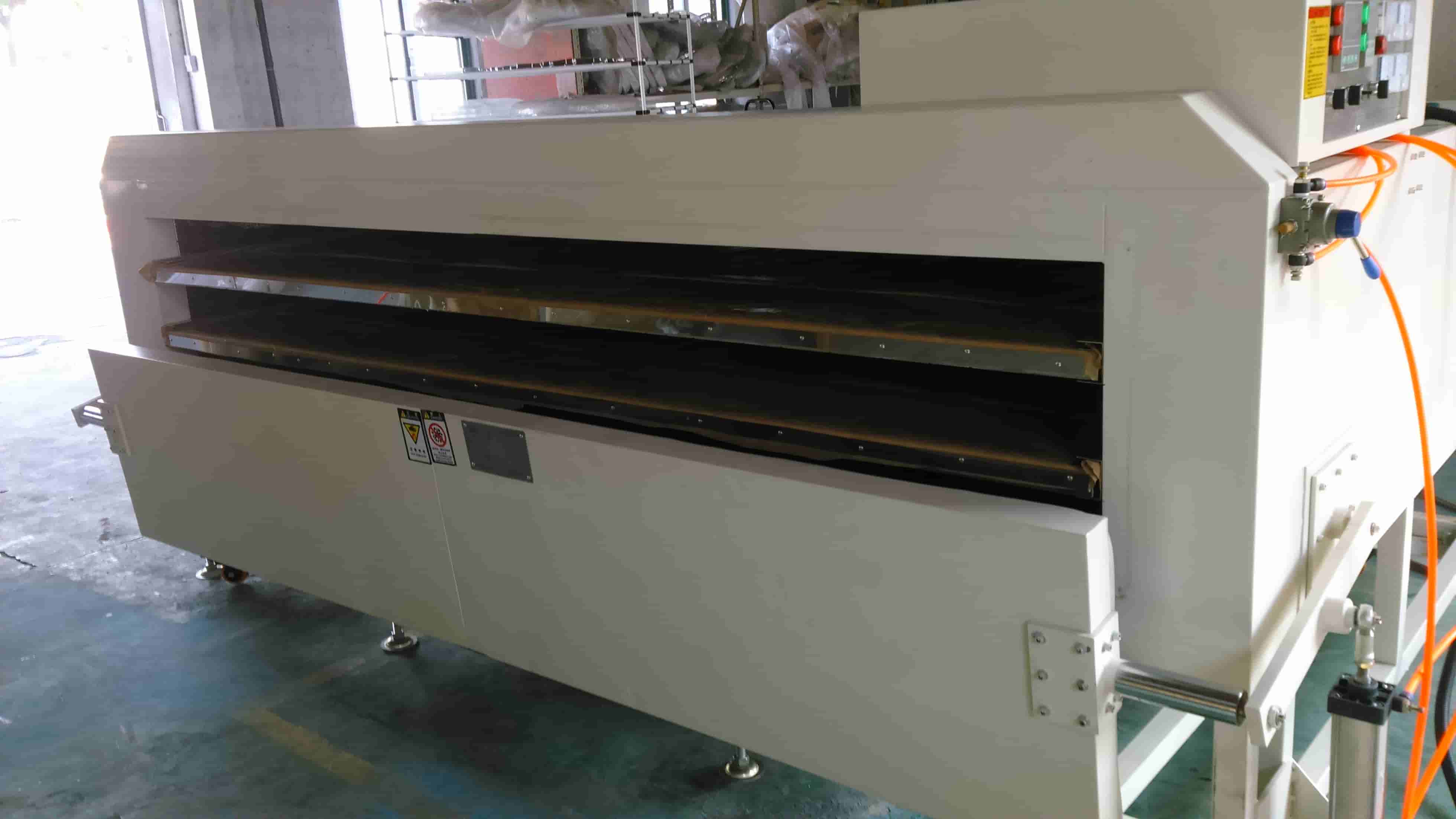

1. Industrial Oven Name: Acrylic Sheet Softening Oven
2. Industrial Oven Model: NMT-HZP-6208
3. Inner Chamber Dimensions: W2600 x D1000 x H250 (mm);
4. External Dimensions: W2800 x D1410 x H1420 (mm);
5. Temperature Range: Room Temperature - 250°C (Normal Use);
6. Heating Time: 1 hour to 250°C ≈20 minutes
7. Temperature Uniformity: ±1.5% (no-load test)
8. Protection Devices: PID auto-tuning, automatic constant temperature, automatic timing, timed alarm and power-off upon reaching a certain temperature, over-temperature power-off, leakage protection, motor overload protection, and other control circuit fuses, blanking switches, and other electrical accessories.
9. Intelligent temperature controller with automatic PID calculation, LED display, and SSR solid-state relay output for precise temperature control.
10. Inner chamber made of mirror-finished 304# stainless steel, fully welded with argon arc welding to prevent dust from forming. Outer casing made of 2.0mm cold-rolled steel with high-temperature powder coating.
11. Double over-temperature protection for greater safety and reliability.
12. Fast heating time and stable and accurate temperature.
13. First-class domestic thermal insulation and heat isolation technology for excellent sealing.
14. Low outer casing temperature, minimal impact on indoor ambient temperature.
15. Energy-saving and power-saving, with strong safety features.
16. Total Power: 40KW (380V) 50HZ).
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
