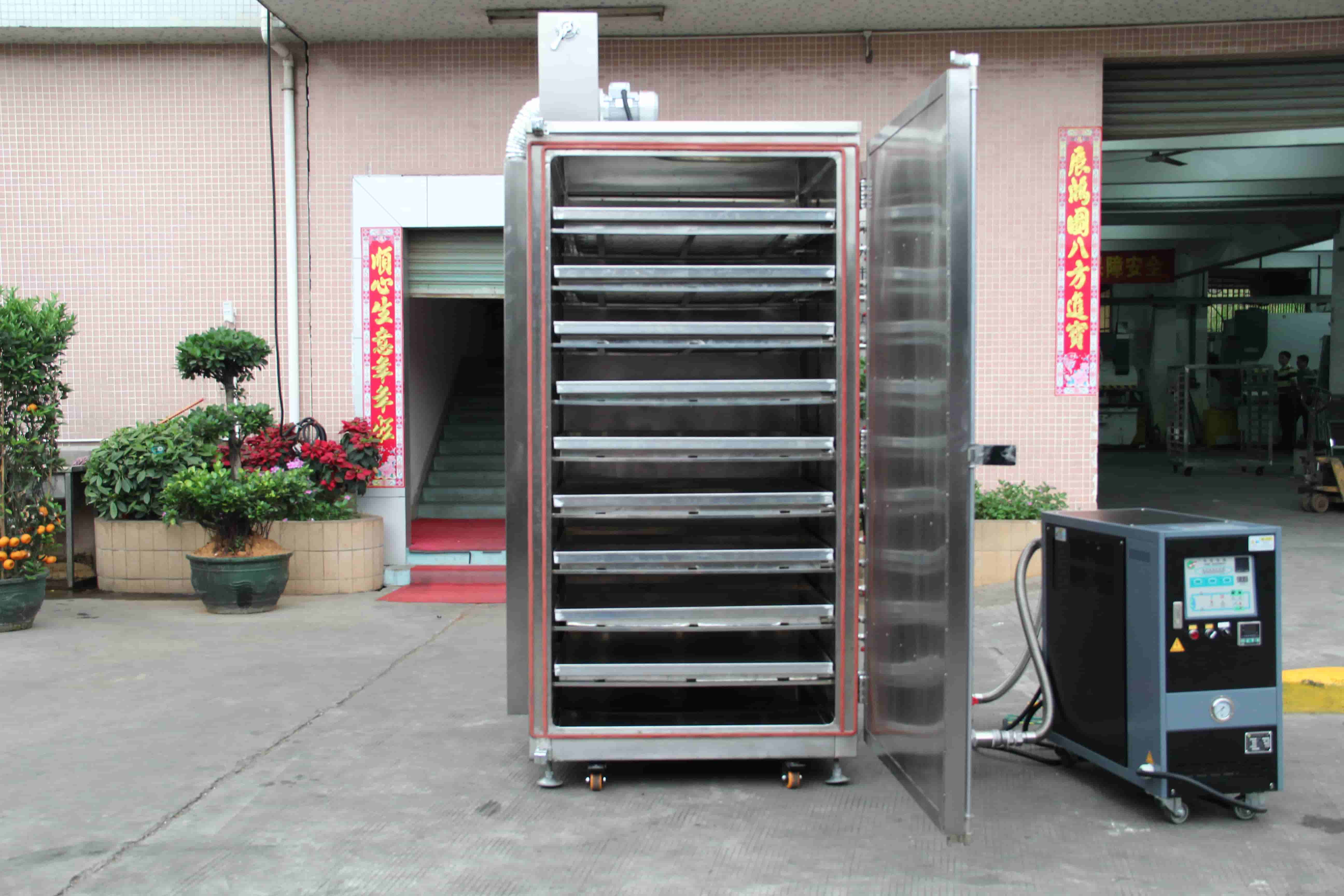

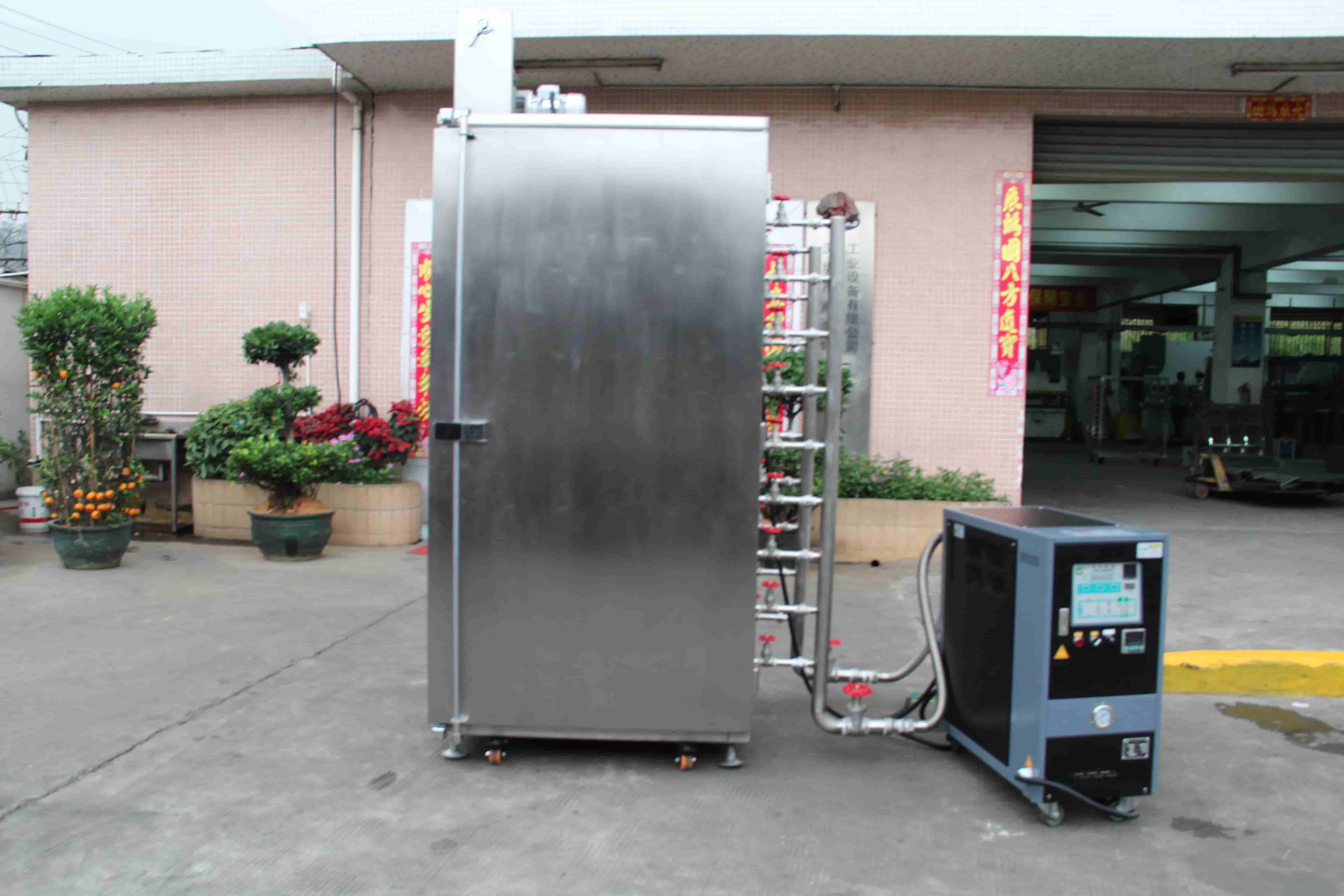

1. Product Name: Water Circulation Explosion-Proof Industrial Oven
2. Model: NMT-ZQ-8006
3. Inner Chamber Dimensions: W1000*D1000*H2000 (single inner chamber);
4. External Dimensions: W1160*D1160*H2270 (mm);
5. Temperature Range: Room Temperature - 80°C (normal use);
6. Heating Rate: No-load ≥10°C/min;
7. Temperature Uniformity: ±1% (no-load test);
8. Protection Devices: PID auto-tuning, automatic constant temperature, automatic timing, timed power-off alarm upon reaching a certain temperature, over-temperature power-off, leakage protection, motor overload protection, control circuit fuses, blanking switches, and other electrical accessories;
9. Utilizes an intelligent temperature controller with automatic PID calculation, LED display, and SSR solid-state relay output for precise temperature control;
10. The inner tank is made of mirror-finished 304# stainless steel; the outer box is 2.0mm cold-rolled steel with a high-temperature powder coating.
11. Internal cleanliness reaches Class 1000 dust-free environment.
12. Oven air duct designed according to product characteristics, ensuring excellent temperature uniformity.
13. Fast heat-up time and stable and accurate temperature.
14. Domestically leading thermal insulation and heat isolation technology, providing excellent sealing effect.
15. Low outer casing temperature, minimal impact on indoor ambient temperature.
16. Unique thermal insulation device for the fan motor.
17. Energy-saving and power-saving, with strong safety performance.
18. Total power: 15kW (380V 50Hz).
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
