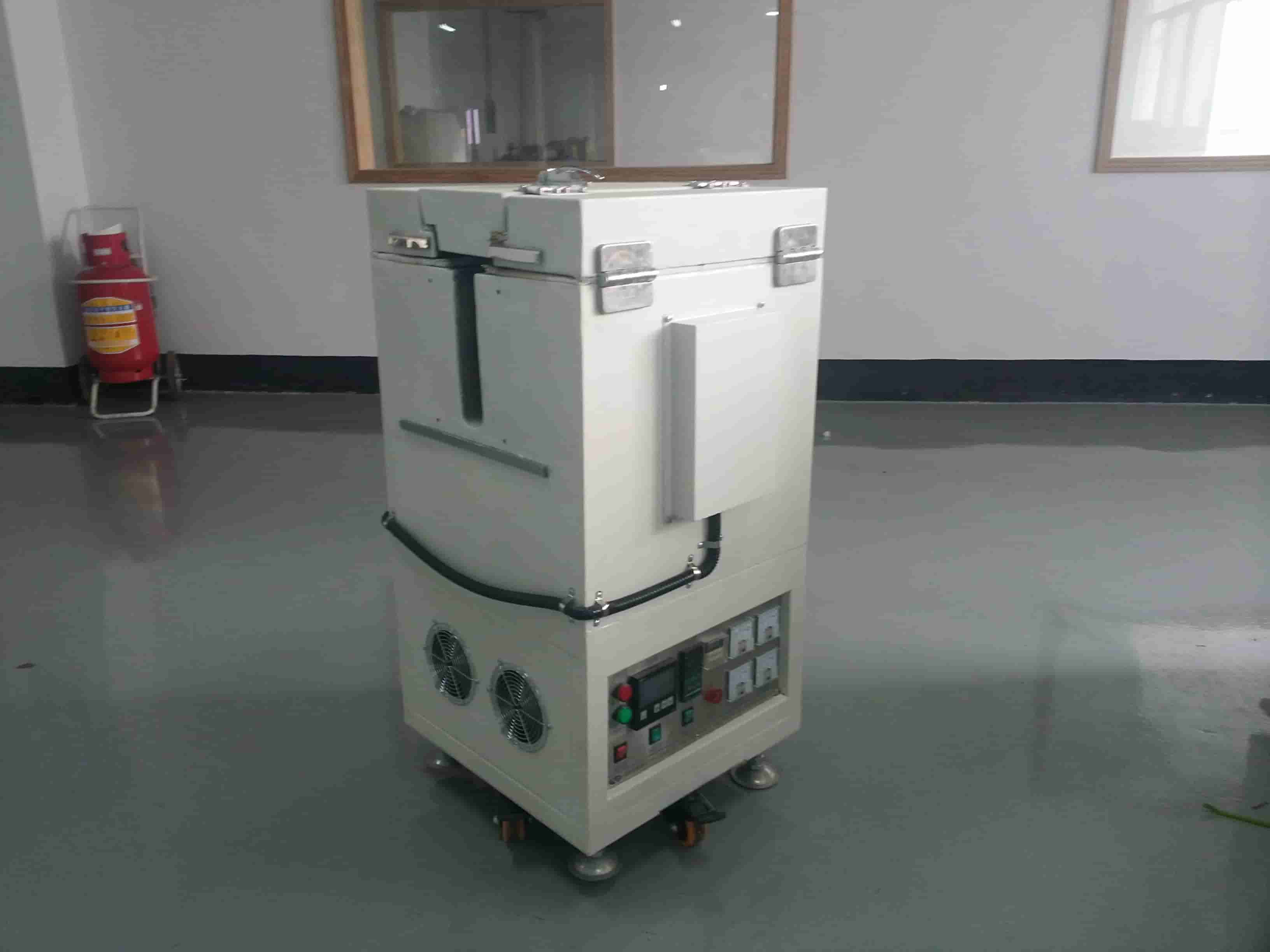

1. Industrial Oven Name: High-Temperature Oven, 800°C Sintering Furnace
2. Industrial Oven Model: NMT-GW-3001
3. Inner Chamber Dimensions: W500*D500*H440 (mm);
4. External Dimensions: W900*D900*H1110 (mm);
5. Temperature Range: Room Temperature - 1000°C (Normal Operation);
6. Heating Time: ≥10°C/min
7. Temperature Uniformity: ±5°C (No-load Test);
8. Protection Devices: PID auto-tuning, automatic constant temperature, automatic timing, timed power-off alarm upon reaching a certain temperature, over-temperature power-off, leakage protection, motor overload protection, control circuit fuses, blanking switches, and other electrical accessories;
9. Uses Taiwan Yatai intelligent thermostat with dual LED displays for PV and SV. Automatically shuts off the heating power when the temperature exceeds the over-temperature protection thermostat setting.
10 The inner tank is made of mirror-finished 304# stainless steel; the outer box is 2.0mm cold-rolled steel with a high-temperature powder coating.
11. Internal cleanliness reaches Class 1000 dust-free environment.
12. High-temperature-resistant silicone packing ensures a beautiful and pollution-free appearance.
13. Oven air duct designed according to product characteristics, ensuring excellent temperature uniformity.
14. Fast heating time and stable and accurate temperature.
15. First-class domestic thermal insulation and heat isolation technology for excellent sealing effect.
16. Low outer casing temperature, minimal impact on indoor ambient temperature.
17. Unique thermal insulation device for the fan motor.
18. Energy-saving and power-saving, with strong safety performance.
19. Total power: 20KW (380V 50Hz)
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
