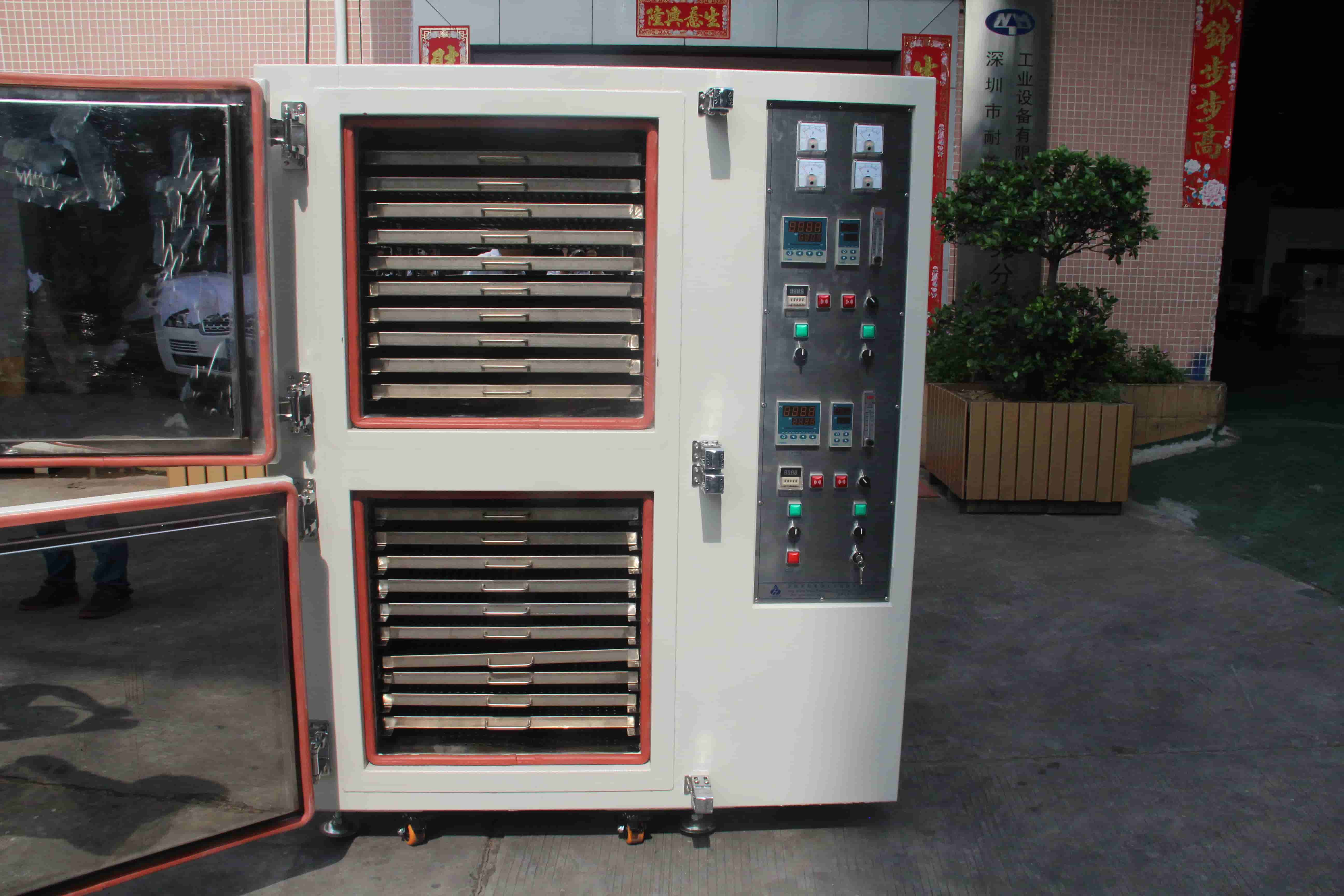

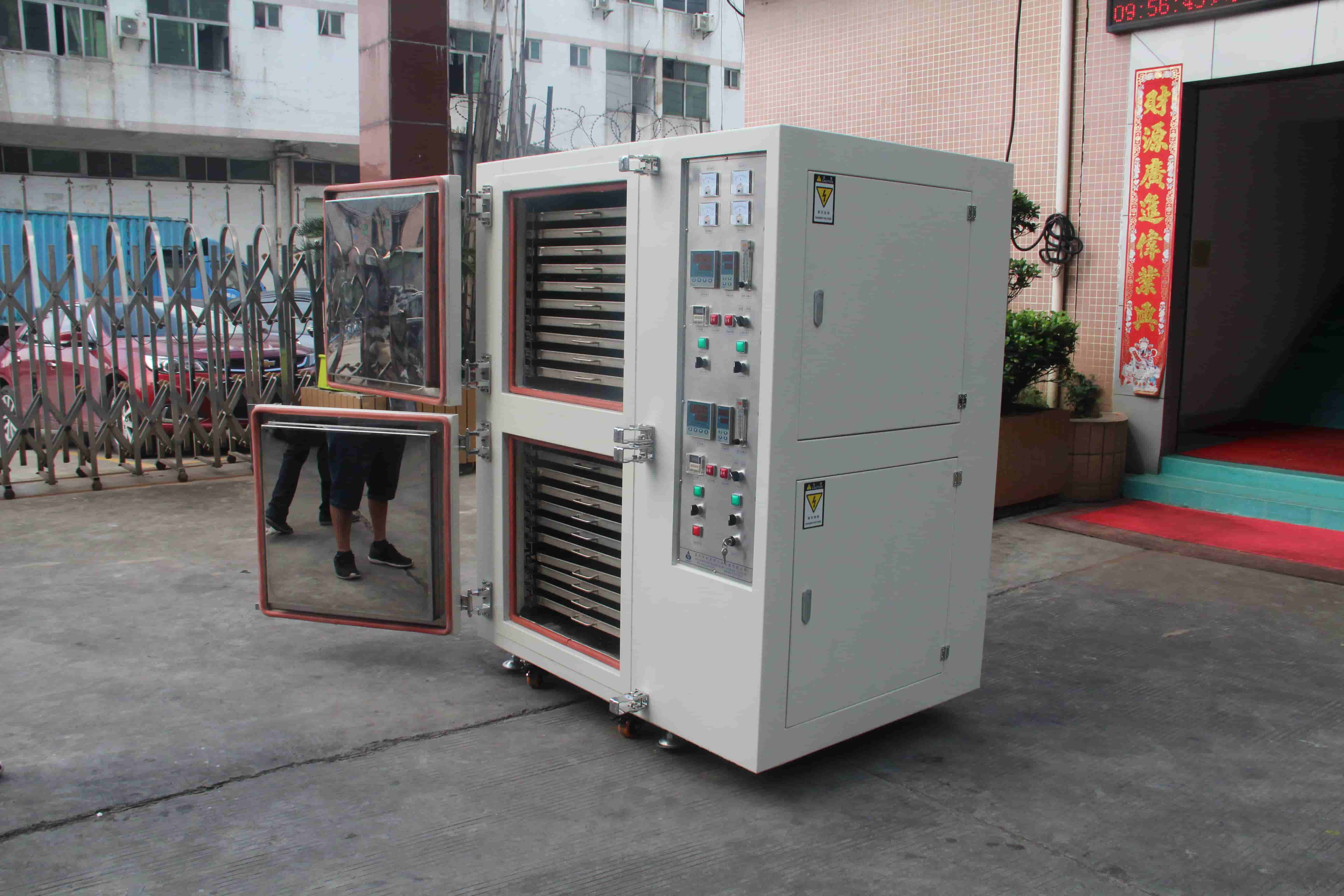

NMT-CD-7210 Nitrogen-filled industrial oven

Specifications:

1. Inner Chamber Dimensions: Upper and lower inner chambers: 610mm wide, 610mm high, and 610mm deep, with independent temperature control.
2. External Dimensions (approximately): 1010mm wide, 2310mm high, and 740mm deep.
3. Temperature Range: Adjustable from room temperature +20°C to +250°C, operating temperature 220°C.
4. Instrument Temperature Fluctuation: ≤±1°C.
5. Temperature Uniformity: Less than ±1.0% (no-load).
6. Heating Rate: ≤8°C/min.
7. Casing Temperature: Equipment temperature within 220°C, with the casing temperature no higher than room temperature +15°C, excluding the furnace mouth and joints.
8. Air Circulation: Horizontal circulation.
9. Power Supply: Three-phase, five-wire, 380V, 50Hz.
10. Total Power: Approximately 18kW.
