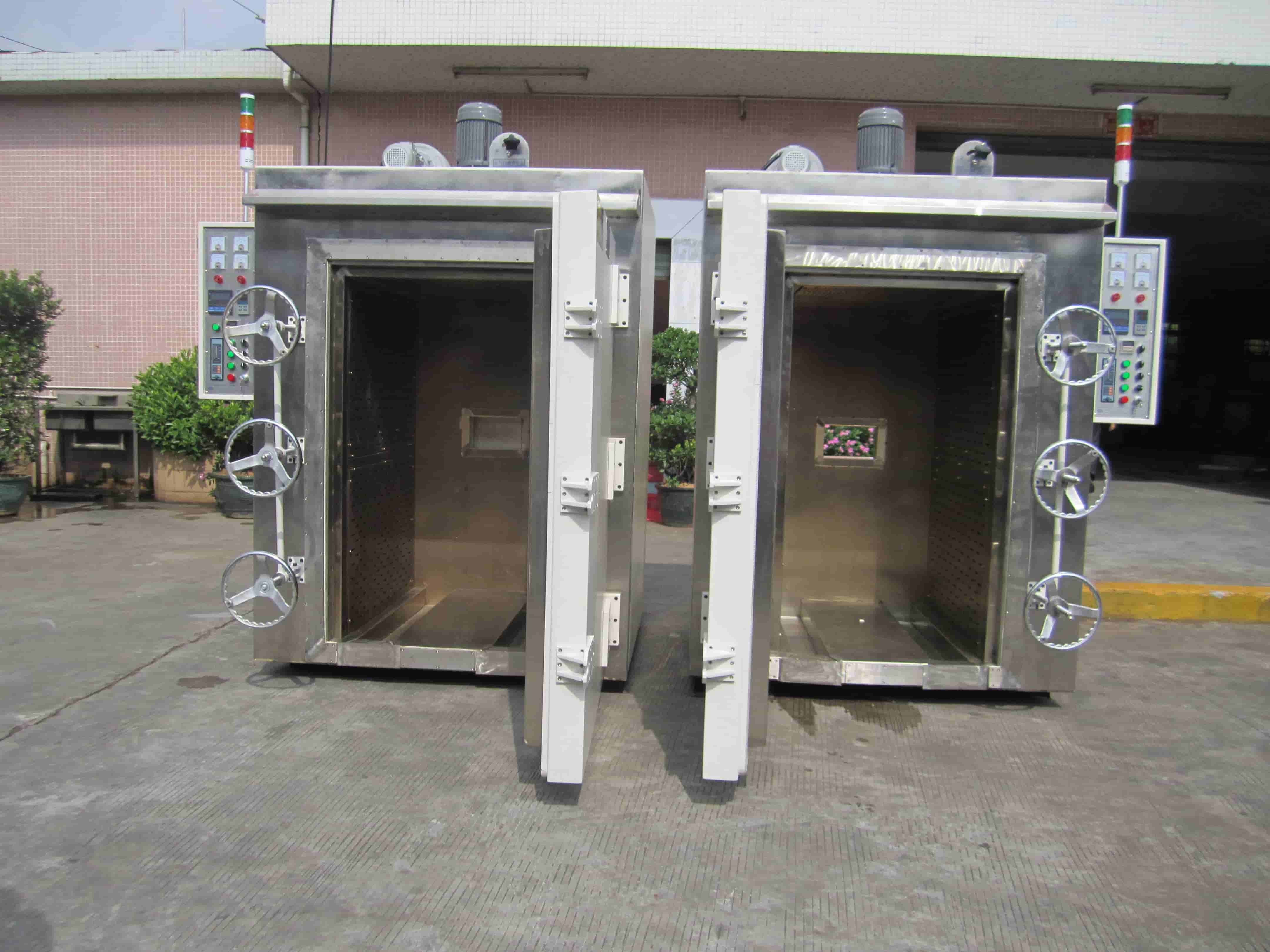

1. Industrial Oven Name: High-Temperature Oven
2. Industrial Oven Model: NMT-GW-3020
3. Inner Chamber Dimensions: W800*D1040*H1600 (mm);
4. External Dimensions: W1750*D1270*H2540 (mm);
5. Temperature Range: Room Temperature - 400°C (Normal Use);
6. Heating Time: ≥8°C/min
7. Temperature Uniformity: ±3°C (No-load Test);
8. Protection Devices: PID auto-tuning, automatic constant temperature, automatic timing, timed power-off alarm upon reaching a certain temperature, over-temperature power-off, leakage protection, motor overload protection, control circuit fuses, no-fuse switches, and other electrical accessories;
9. Intelligent temperature controller with automatic PID calculation, LED display, and SSR solid-state relay output for precise temperature control;
10. Inner chamber material: 30-100mm mirror finish. 4# stainless steel plate; outer box made of 2.0mm cold-rolled steel plate with high-temperature powder coating;
11. Internal cleanliness reaches Class 1000 dust-free environment;
12. High-temperature-resistant silicone packing for a beautiful and pollution-free appearance;
13. Oven air duct designed according to product characteristics for excellent temperature uniformity;
14. Fast heat-up time, stable and accurate temperature;
15. First-class domestic thermal insulation and heat isolation technology for excellent sealing effect;
16. Low housing temperature, minimal impact on indoor ambient temperature;
17. Unique thermal insulation device for the fan motor;
18. Energy-saving and power-saving, with strong safety performance;
19. Total power: 50kW (380V 50Hz).
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
