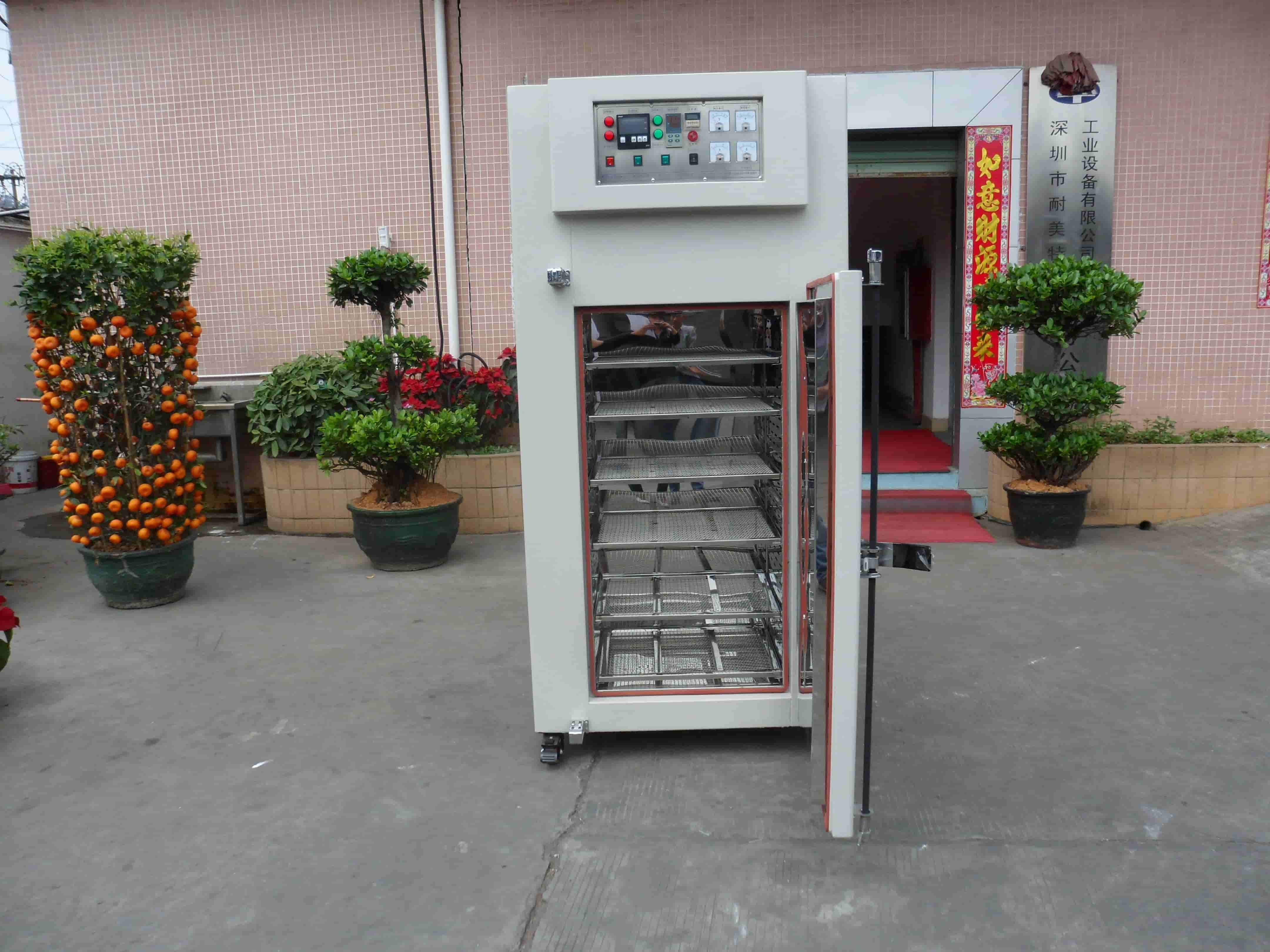

1. Industrial Oven Name: Standard Industrial Oven
2. Industrial Oven Model: NMT-1005
3. Inner Chamber Dimensions: W600*D500*H1200 (mm);
4. External Dimensions: W1000*D630*H2090 (mm);
5. Temperature Range: Room Temperature - 250°C (Normal Use);
6. Heating Time: ≈10 minutes to 150°C
7. Temperature Uniformity: ±1.5% (No-load Test);
8. Protection Devices: PID auto-tuning, automatic constant temperature, automatic timing, timed power-off alarm upon reaching a certain temperature, over-temperature power-off, leakage protection, motor overload protection, control circuit fuses, blanking switches, and other electrical accessories;
9. Intelligent temperature controller with automatic PID calculation, LED display, and SSR solid-state relay output for precise temperature control;
10. Inner chamber made of mirror-finished 304# stainless steel Full-length argon arc welding prevents dust from forming on the machine itself; the outer casing is made of 2.0mm cold-rolled steel with a high-temperature powder coating.
11. Internal cleanliness reaches Class 1000 dust-free environment.
12. Double over-temperature protection for greater safety and reliability.
13. Internal hot air circulation ensures uniform heating of baked items.
14. Fast heating time and stable and precise temperature.
15. First-class domestic thermal insulation and heat isolation technology for excellent sealing.
16. Low outer casing temperature minimizes impact on indoor ambient temperature.
17. Energy-saving and power-saving, with strong safety performance.
18. Total power: 10kW (AC380V 50Hz)
If you have special needs or customization, please contact us.
We can design custom industrial ovens and furnaces to your specifications.
