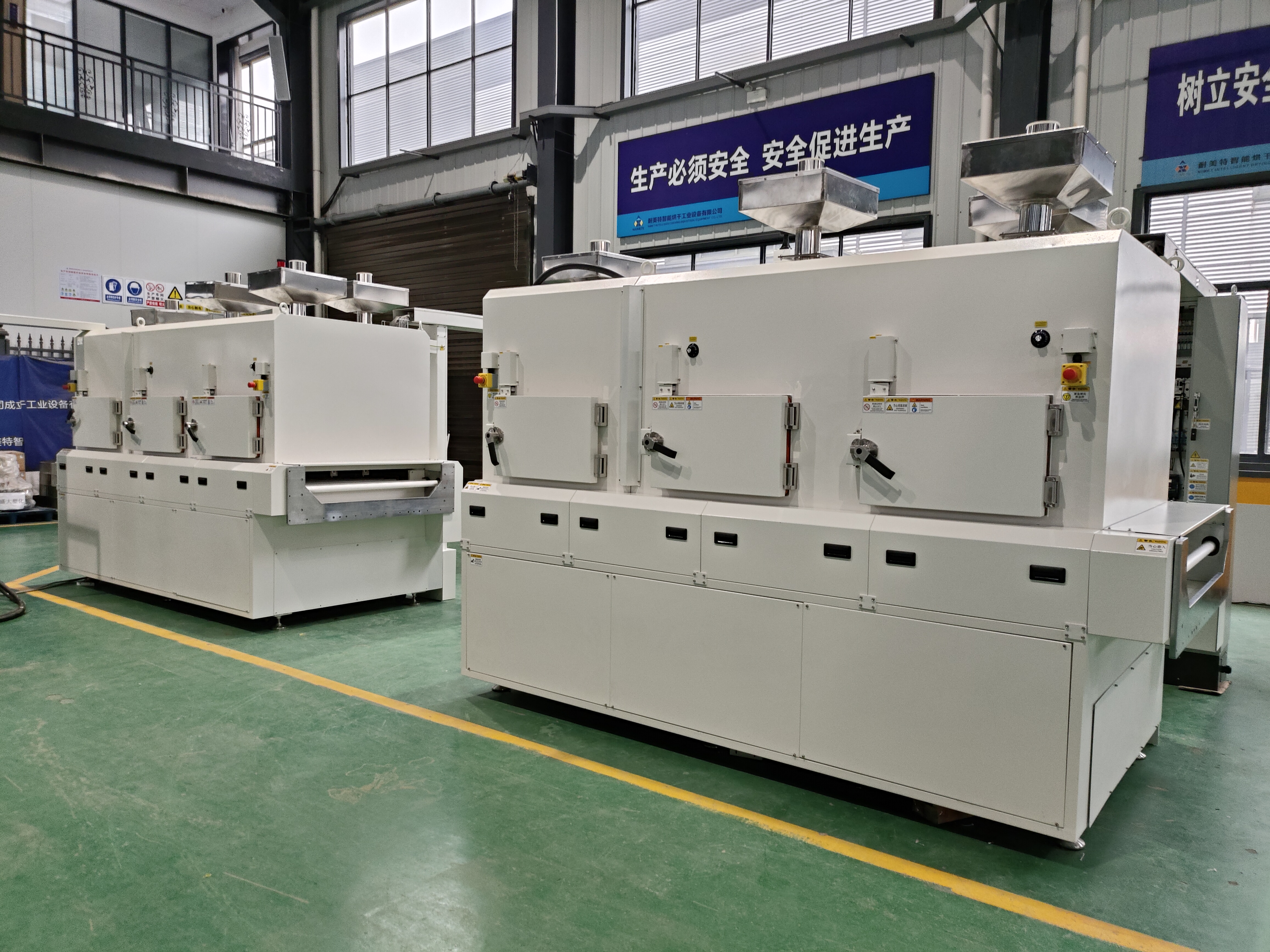

Continuous Heating Tunnel - Cooling Tunnel for Solar Glass

Description:

Smart Cooling Tunnel, with electrical heating tube, and Chiller. To cool glass from 300℃ to less than 50℃

REQUEST A QUOTE

Specifications:

Size	3meters long, 1meter width
Name	Solar Glass Cooling Tunnel
Function	Gradually cooling glass temperature down
Heating Method	Hot Air Convection
Configuration	PLC Control Electrical Heating and cooling Ceramic roller Chiller 3sections, independently control

A small tunnel, heating tunnel used to gradually cool the temperature of glass down. Dust free, broken glass collection. Air would blow out from top and bottom, with adjustable volume to keep glass move smoothly on the conveyor. Depending on the production process, the tunnel is devided into 3 sections, each section is independently controlled which means the temperature, fans and conveyor could be independently controlled.
The machine pass through UL &CE.
