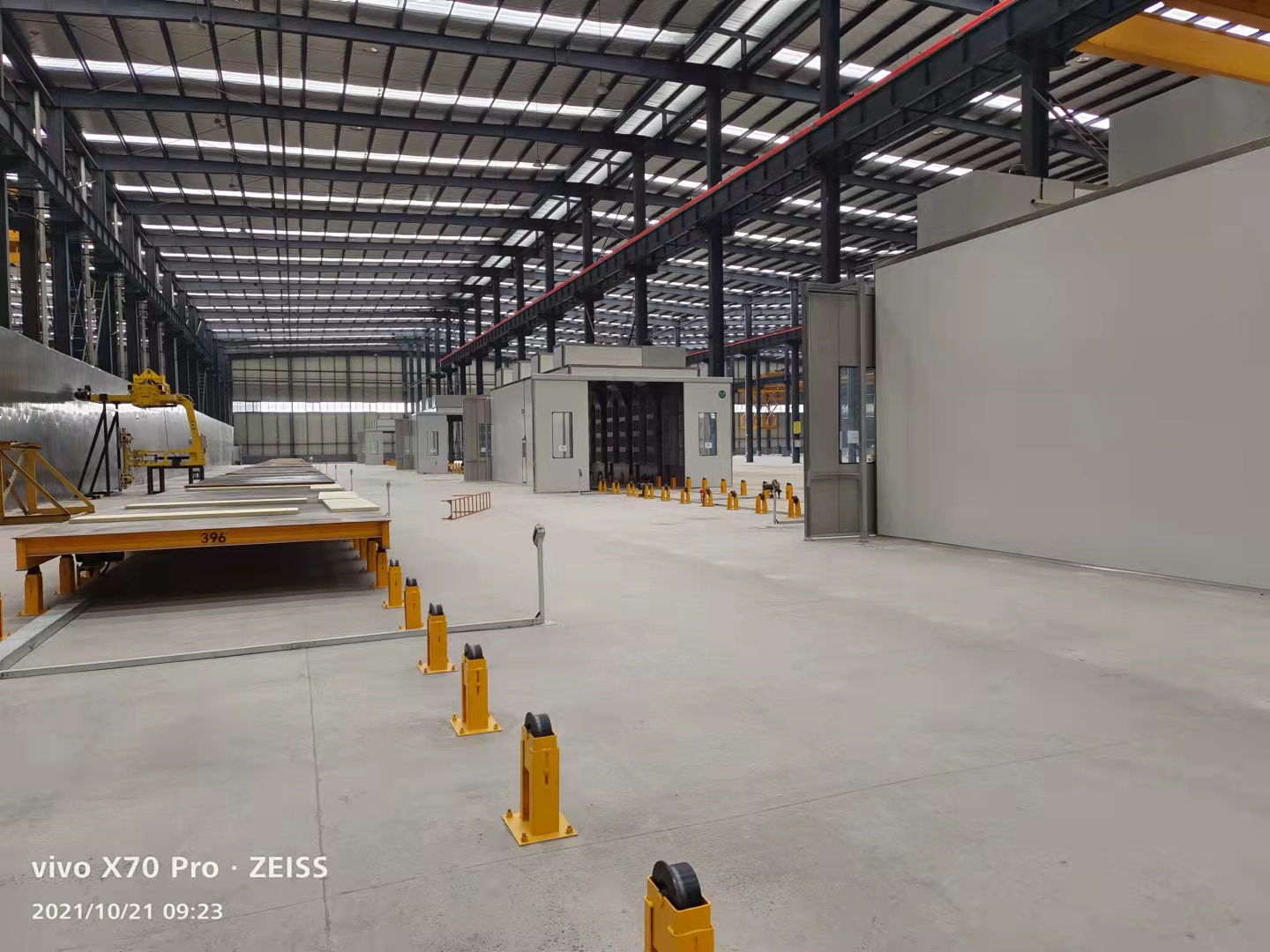

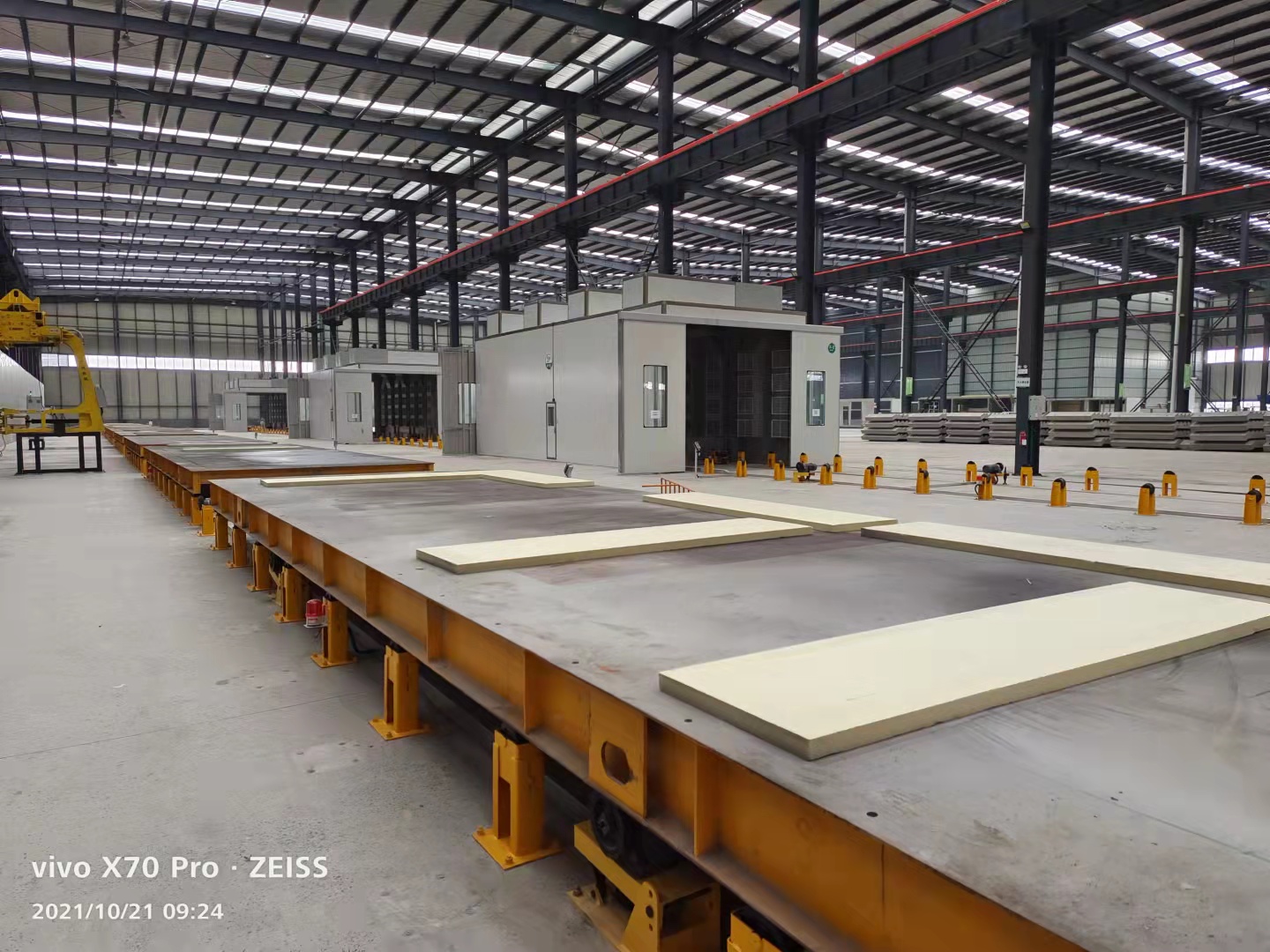

NMT-TZ-89 Large aging room

Specifications:

1. Room Structure: The drying room measures 13,500mm in length, 5,475mm in height, and 8,400mm in width.
2. Doors: Two insulated, automatic sliding doors are installed at the entrances and exits to minimize heat loss.
3. Inspection Doors: Two sets, measuring 800mm x 2,000mm (W x H), with safety locks and glass observation windows.
4. Venetian Blinds: The drying room is equipped with adjustable airflow louvers for a more uniform temperature within the oven.
5. Heating Chamber: Two heating chambers are powered by the equipment, and a circulating fan delivers heat from the heating chambers to the drying room.
6. Control Panel: The equipment has a separate control cabinet.
